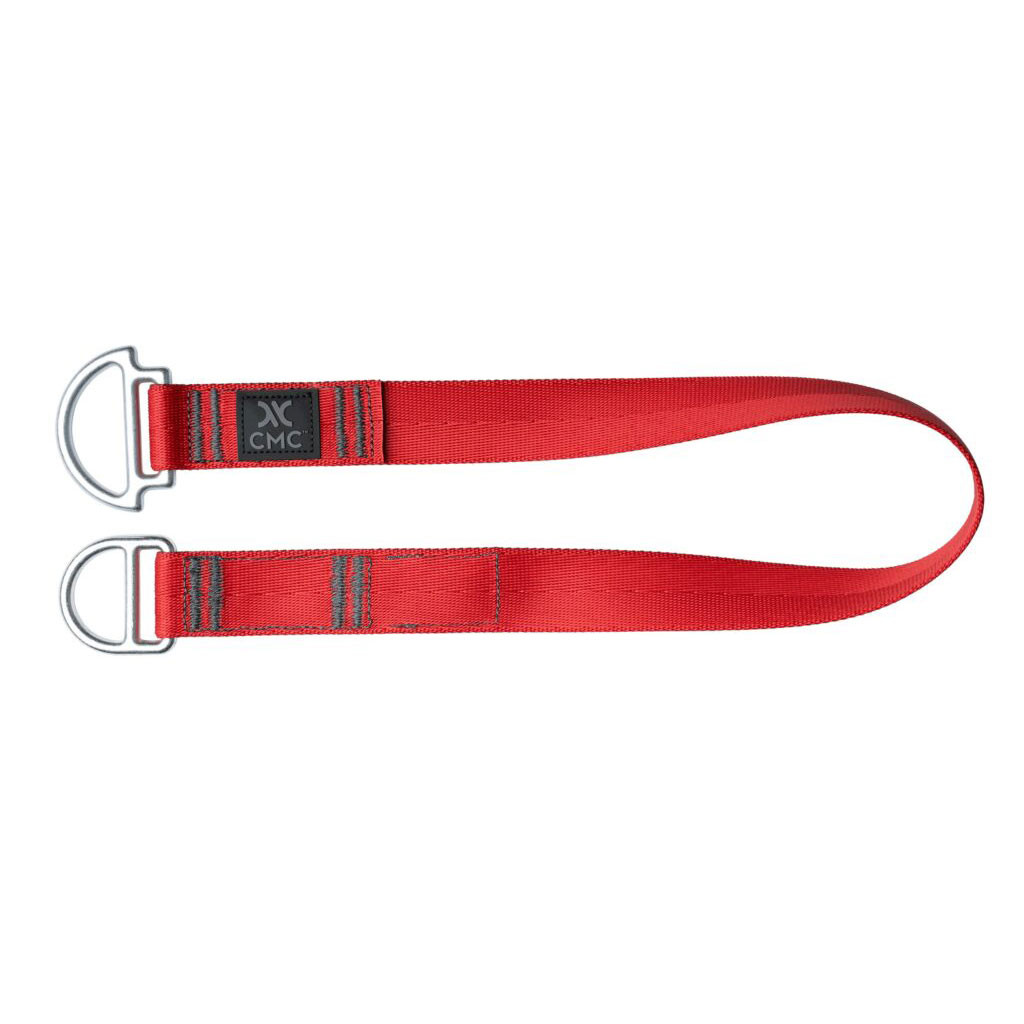

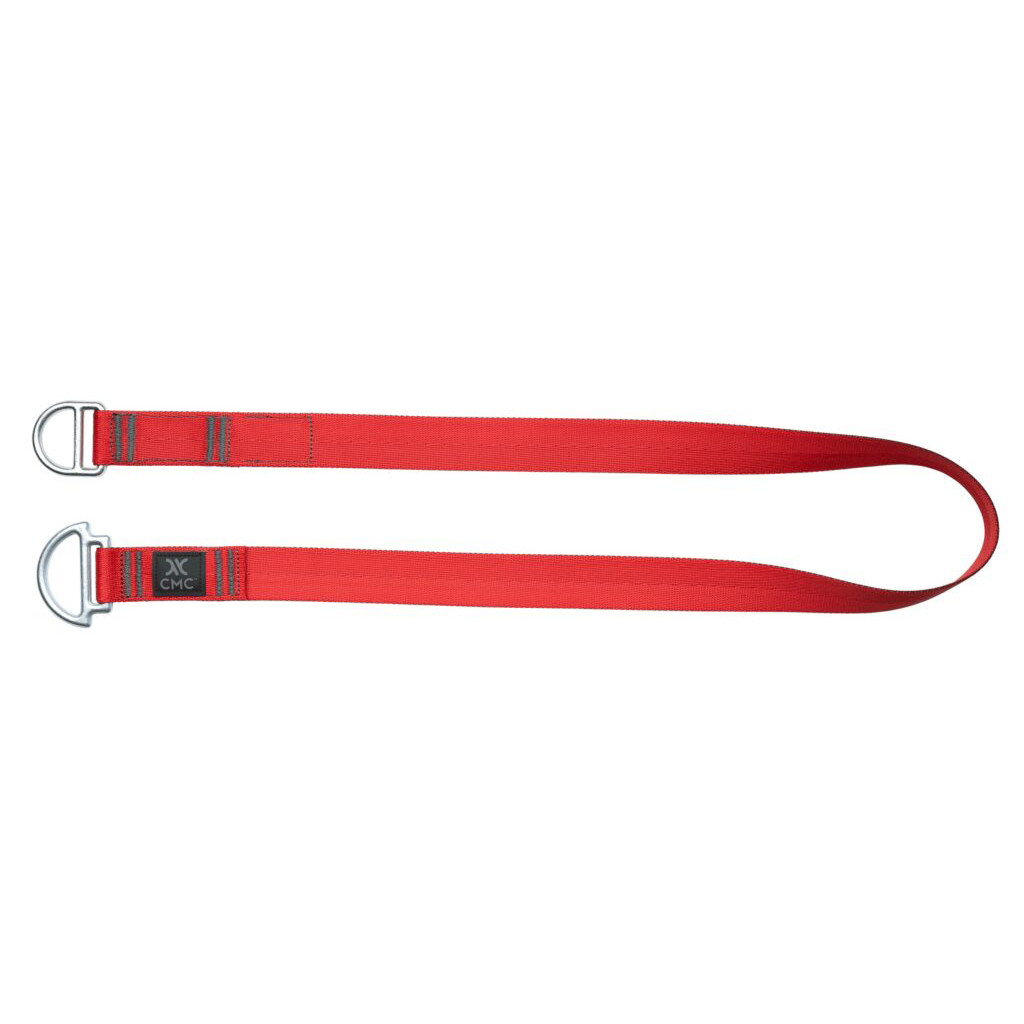

Supple and pliable, the SL Variable Anchor Strap bends easily around structures and feeds smoothly through metal grating. It combines NFPA General Use strength with a compact, smooth-handling design that excels in challenging conditions. Consider pairing the SL models with CMC’s Anchor Sleeves and Edge Guards for increased versatility, durability, and lifetime performance.
Note: CMC recommends using a Delta Quick Link connector to prevent possible tri-axial loading of a carabiner when used in a basket configuration.
Features

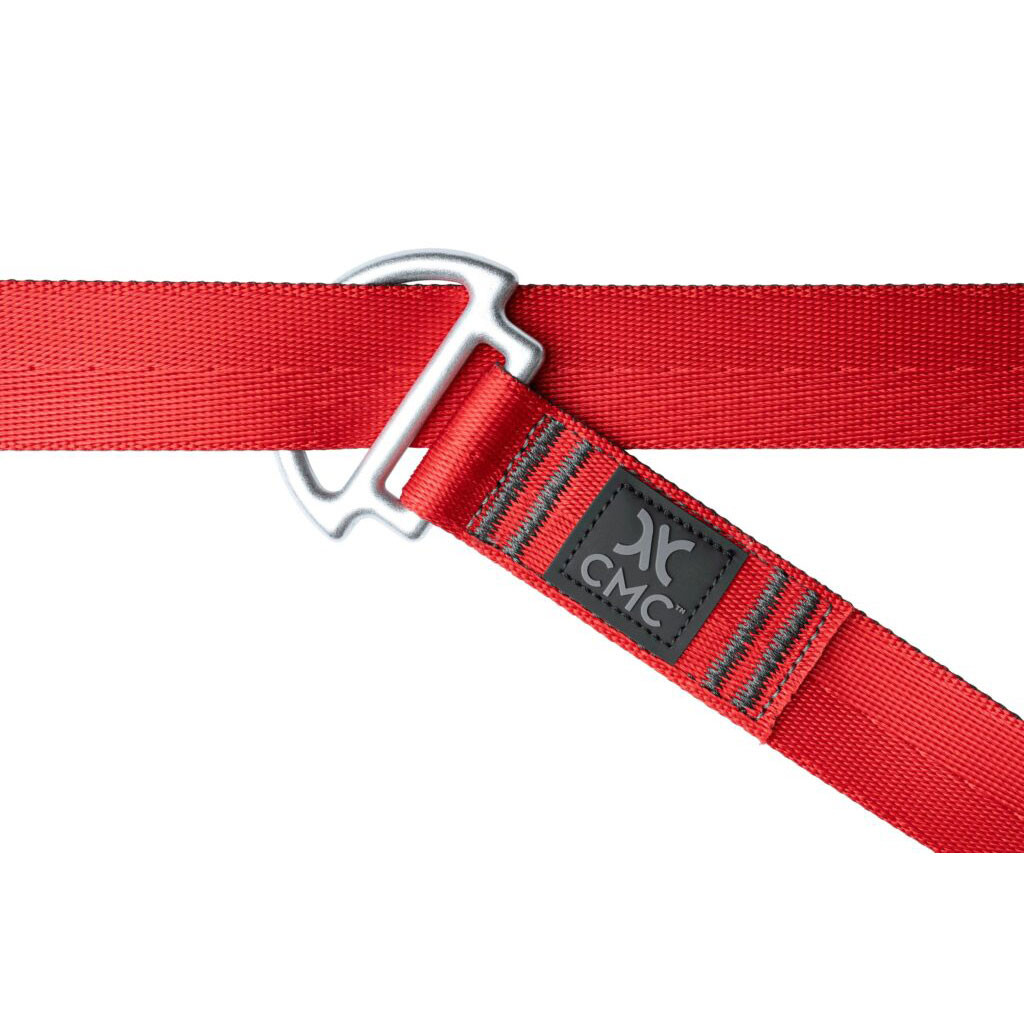

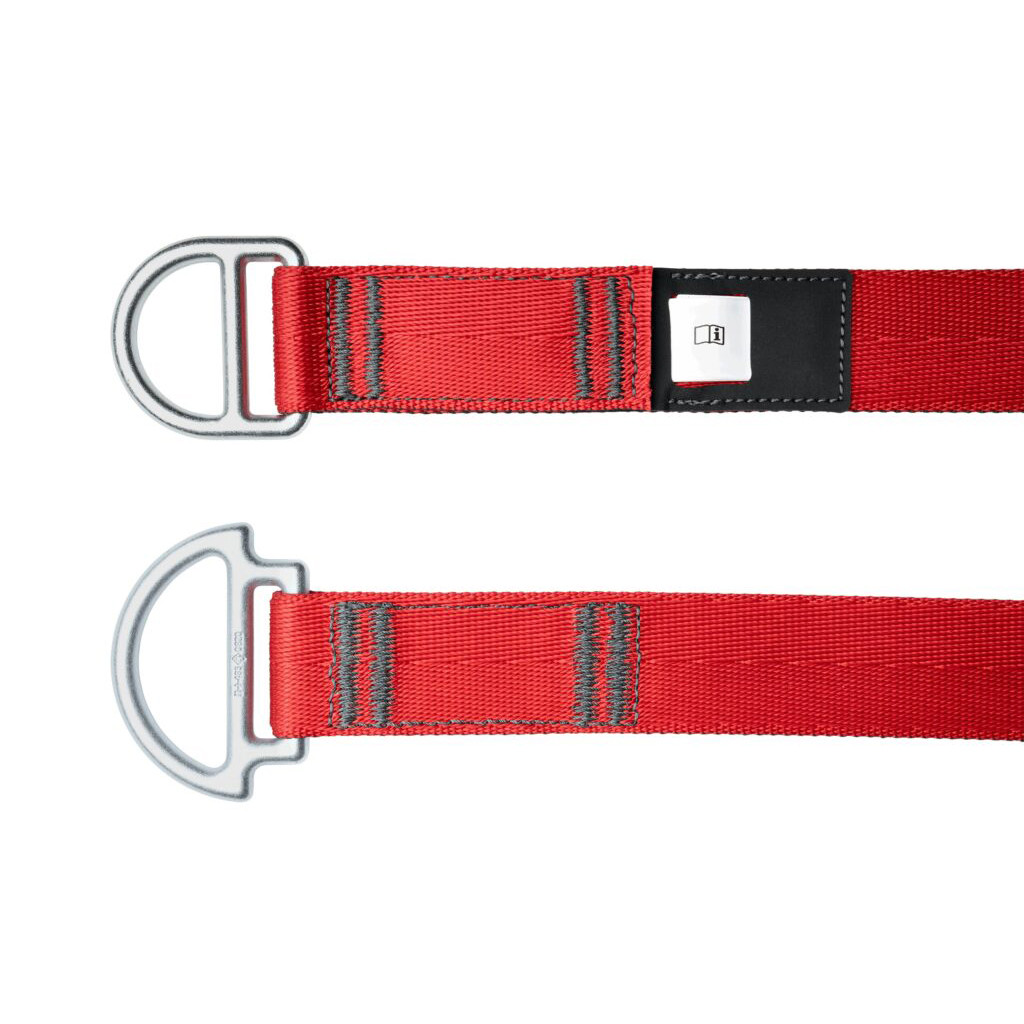

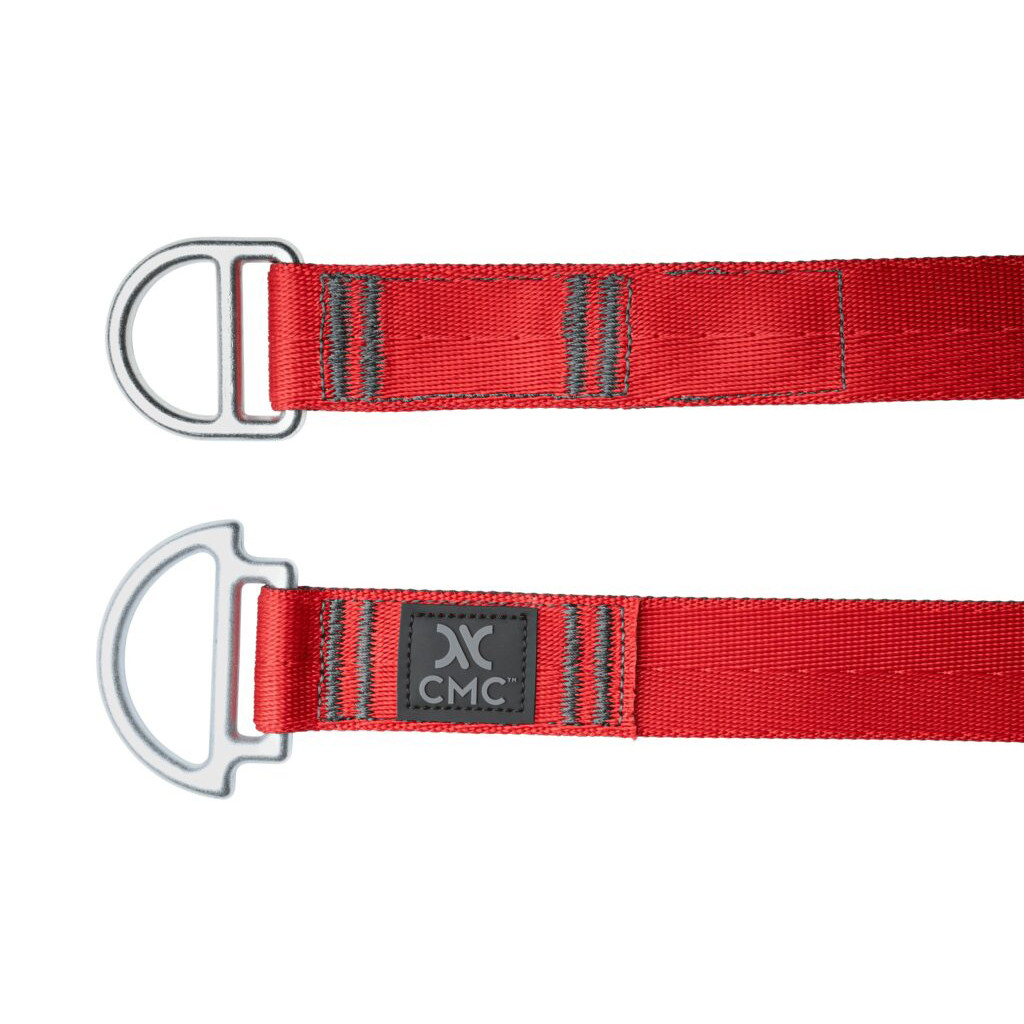

- Steel D-Rings sized to pass through one another for easy Choker (Girth Hitch)
- Single-layer design is compact and lightweight – easy to pack, carry, and deploy
- Proof-loaded steel hardware and weather-resistant polyester webbing
- Polyester is more resistant to UV and water, and has less elongation than nylon
- Supple and pliable – bends easily around structures and metal grating
- Bright red for high visibility with contrasting gray stitching to aid inspection
- Combines with anchor sleeves and edge guards to add versatility & durability
- Classified to NFPA General Use for Basket (U), Choker (Girth Hitch) and End-to-End
- Made in the USA
Strength Specifications for All Sizes:
- Basket (U) Configuration: 62 kN (13,938 lbf)

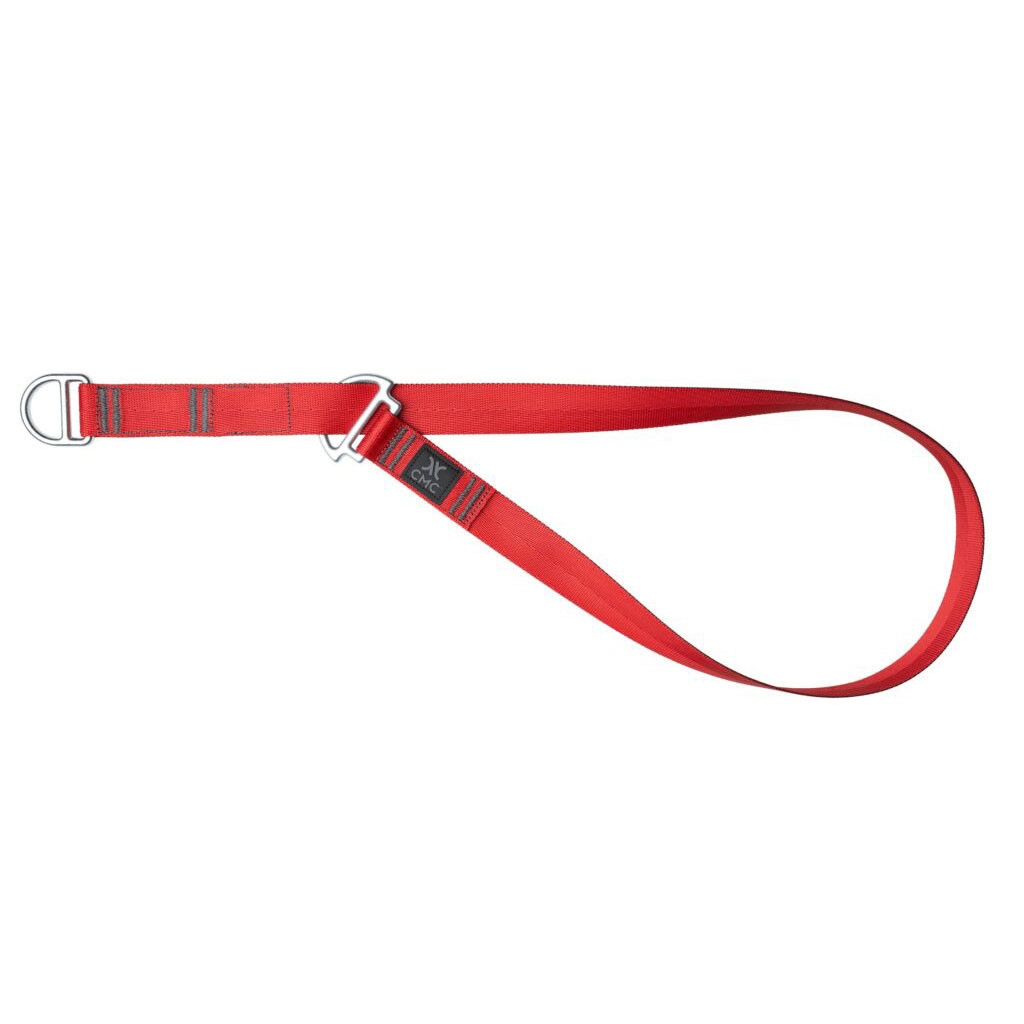

- Choker (Girth Hitch) Configuration: 30 kN (6,744 lbf)
- End-to-End Configuration: 29 kN (6,519 lbf)

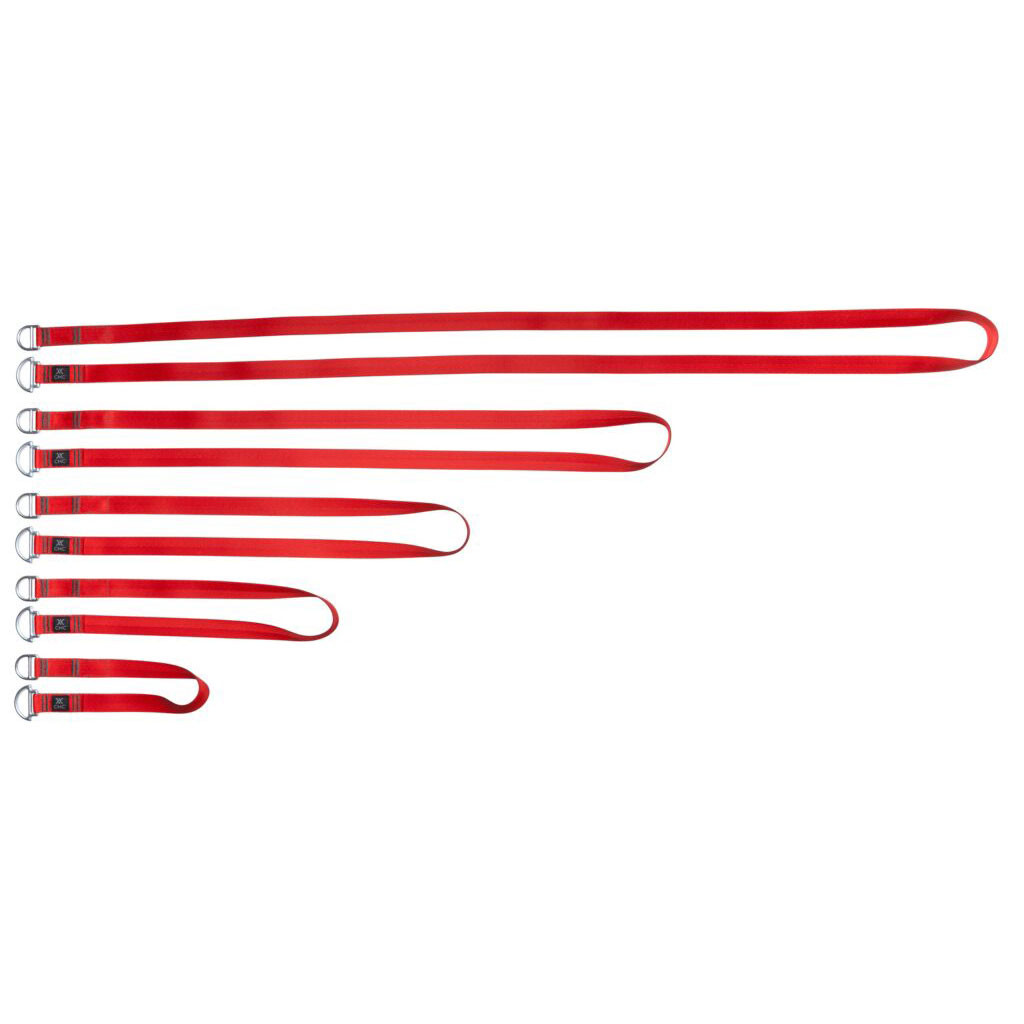

Specifications
Small
- Weight: 0.36 KG (0.8 LB)
- Length: 91 CM (3 FT)
Medium
- Weight: 0.44 KG (0.96 LB)
- Length: 152 CM (5 FT)
Large
- Weight: 0.5 KG (1.11 LB)
- Length: 213 CM (7 FT)
X-Large
- Weight: 0.61 KG (1.34 LB)
- Length: 305 CM (10 FT)
XX-Large
- Weight: 0.78 KG (1.73 LB)
- Length: 457 CM (15 FT)
