The CMC Triskelion's impressive working height range adapts to fit low-clearance areas and extends to haul patients in full-size litters. Unique features include its compatibility with cable and rope up to 13 mm (1/2 in), anchor points for pulley systems, multiple winch mounting options, rectangular legs with built-in stoppers, tethered push pins, high contrast graphics, pivoting feet, quick-connect webbing hobble strap, and reinforced carry bag for single or two-person transport. The CMC Triskelion is also supported by thoughtful accessories that enhance its capabilities and make it even easier to use.
Triskelion Features:
Height
- 10ft max working height allows rescuers to haul patients from a confined space using a harness or litter
- 5.5ft min working height facilitates access to low-clearance areas

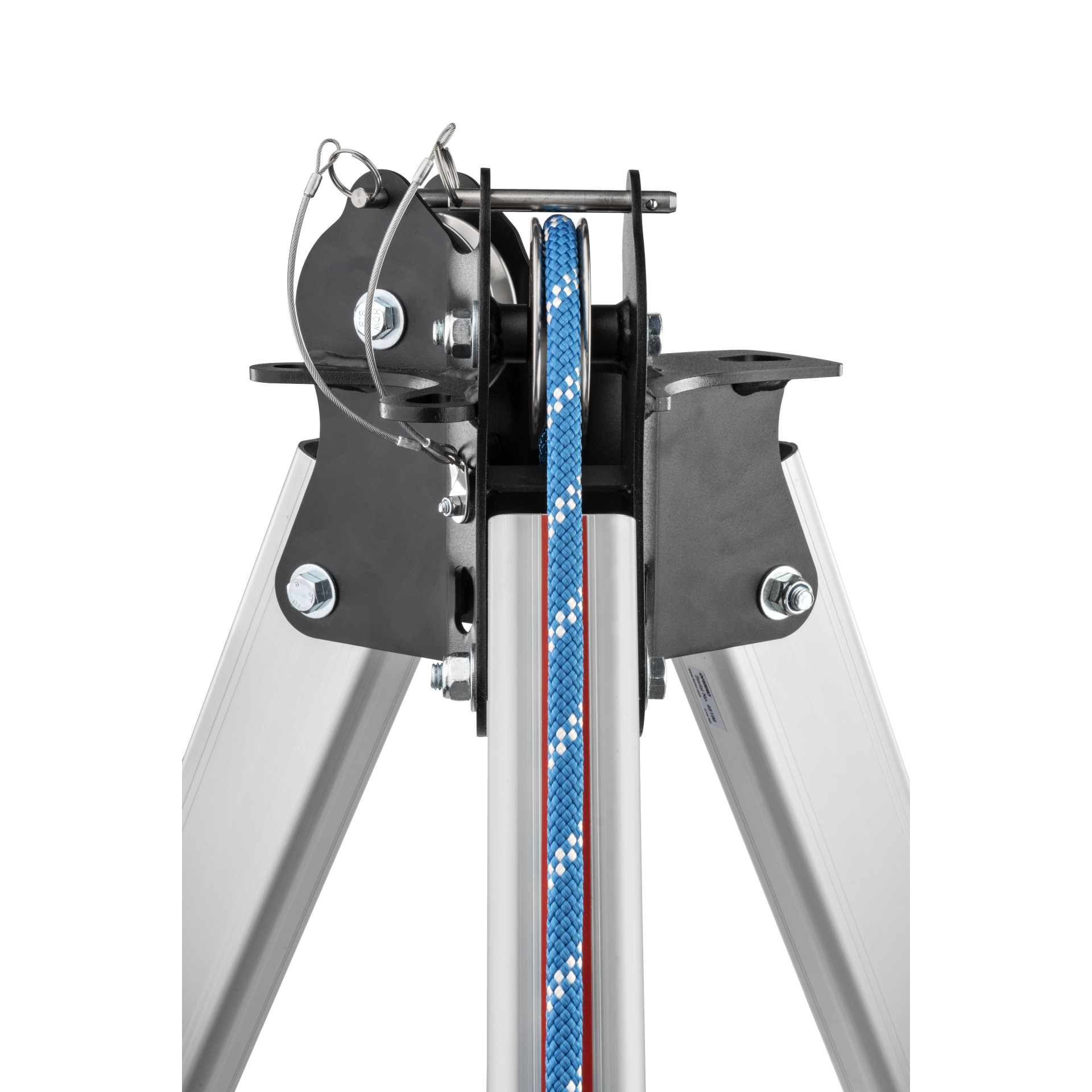

Rigging
- Two head-mounted stainless steel pulleys compatible with cable and rope up to 13 mm (1/2 in)
- Three side-plate anchor points ideal for 4:1s like the CSR2 pulley system
- Three tie-off points for additional rigging or stabilization
- Several mounting options for the Harken LokHead Winch and DBI-Sala Salalift II Winch
Legs
- Rectangular shape prevents spinning and properly aligns adjustment holes and tripod feet
- Built-in stoppers keep the inner legs from pulling out all the way, allowing full extension without risk of separation
- 4 in leg height increments enable maximum tripod extension in height constricted areas
Pins
- Legs are secured using large, quick-action, ball-lock push pins that are easily handled with gloves
- Push pins reassuringly snap into place and robust lanyards keep them from getting lost or separated

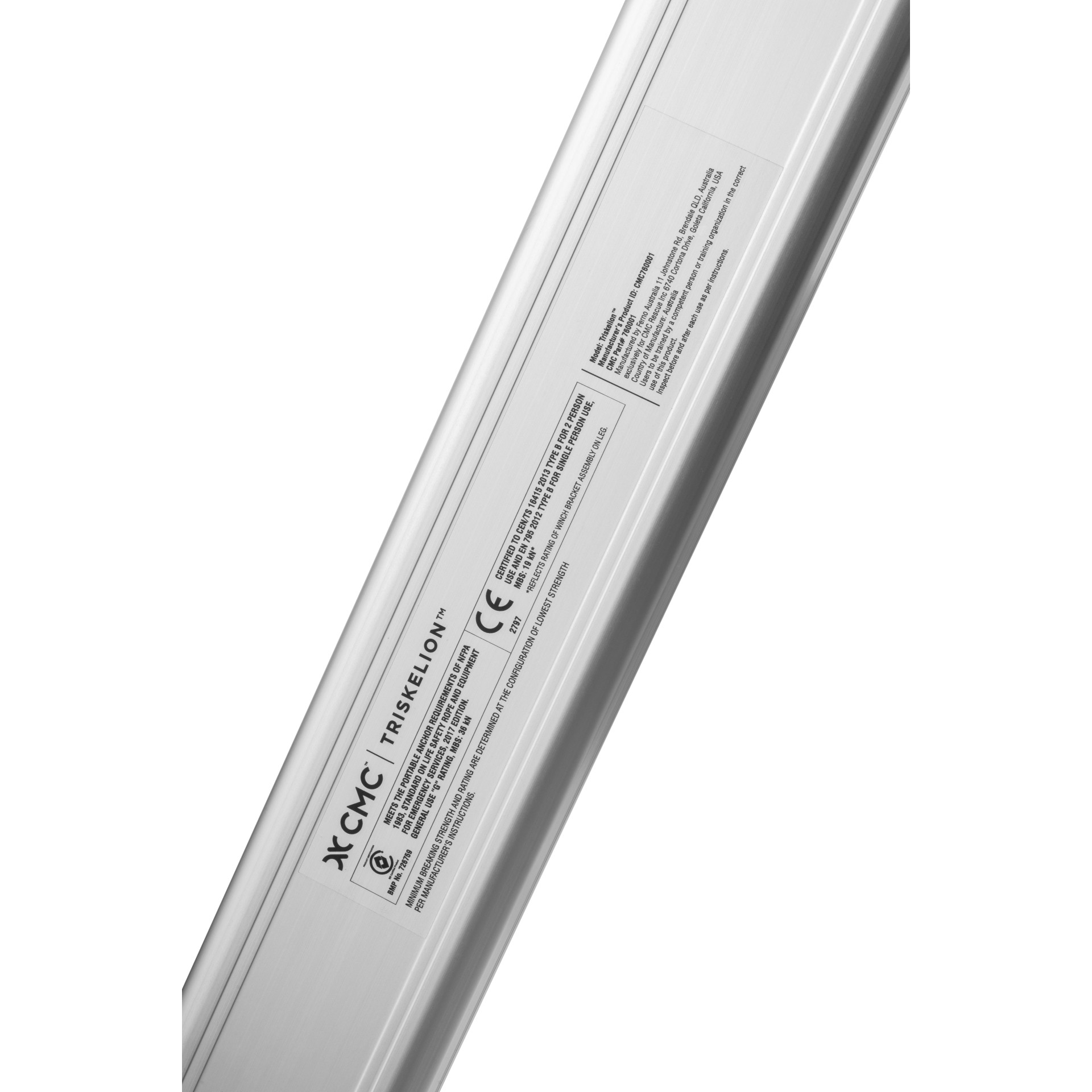

Graphics
- High contrast graphics are easy to see in low light
- Leg height numbering is clearly communicated in noisy environments
- Additional icons guide winch installation to align with head-mounted pulleys

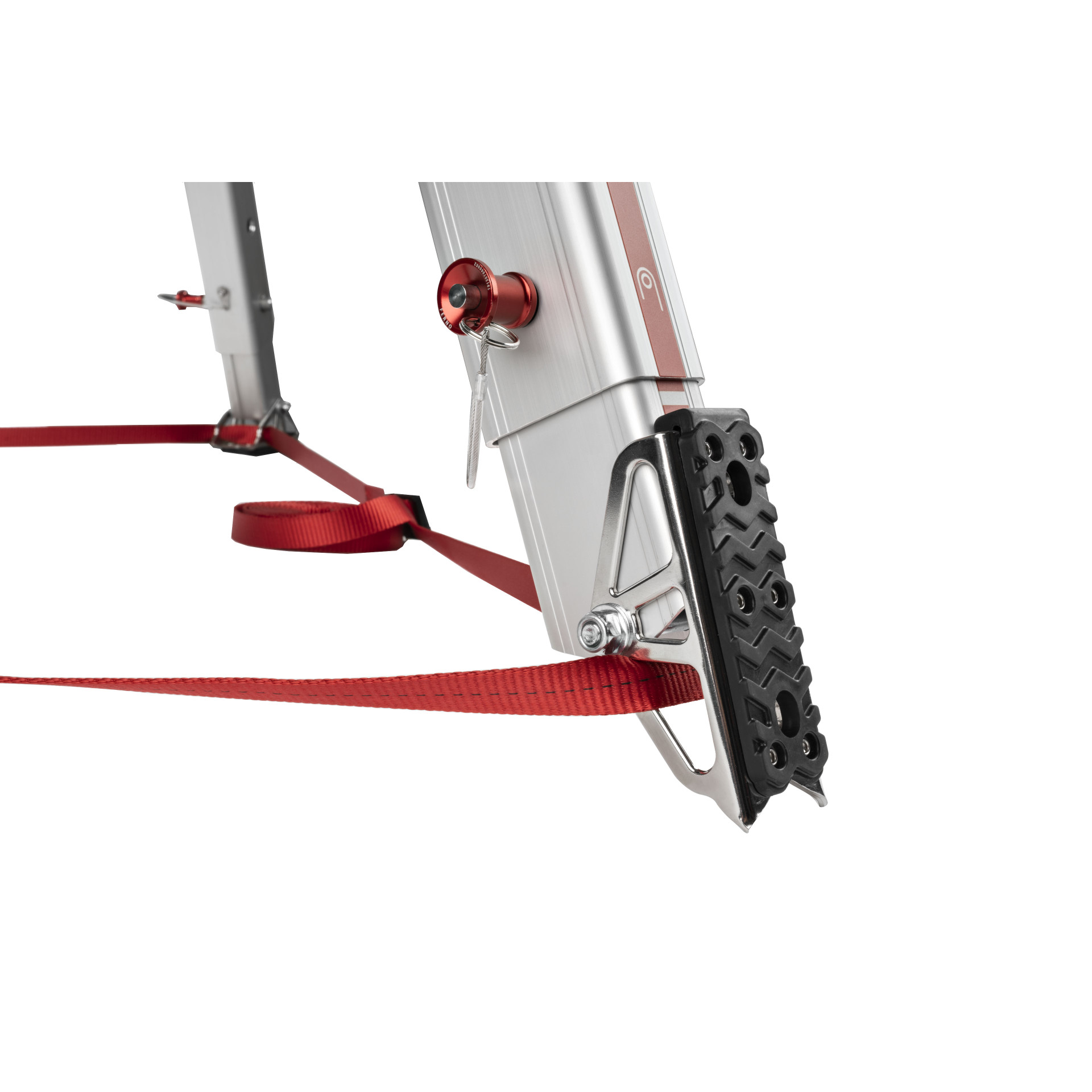

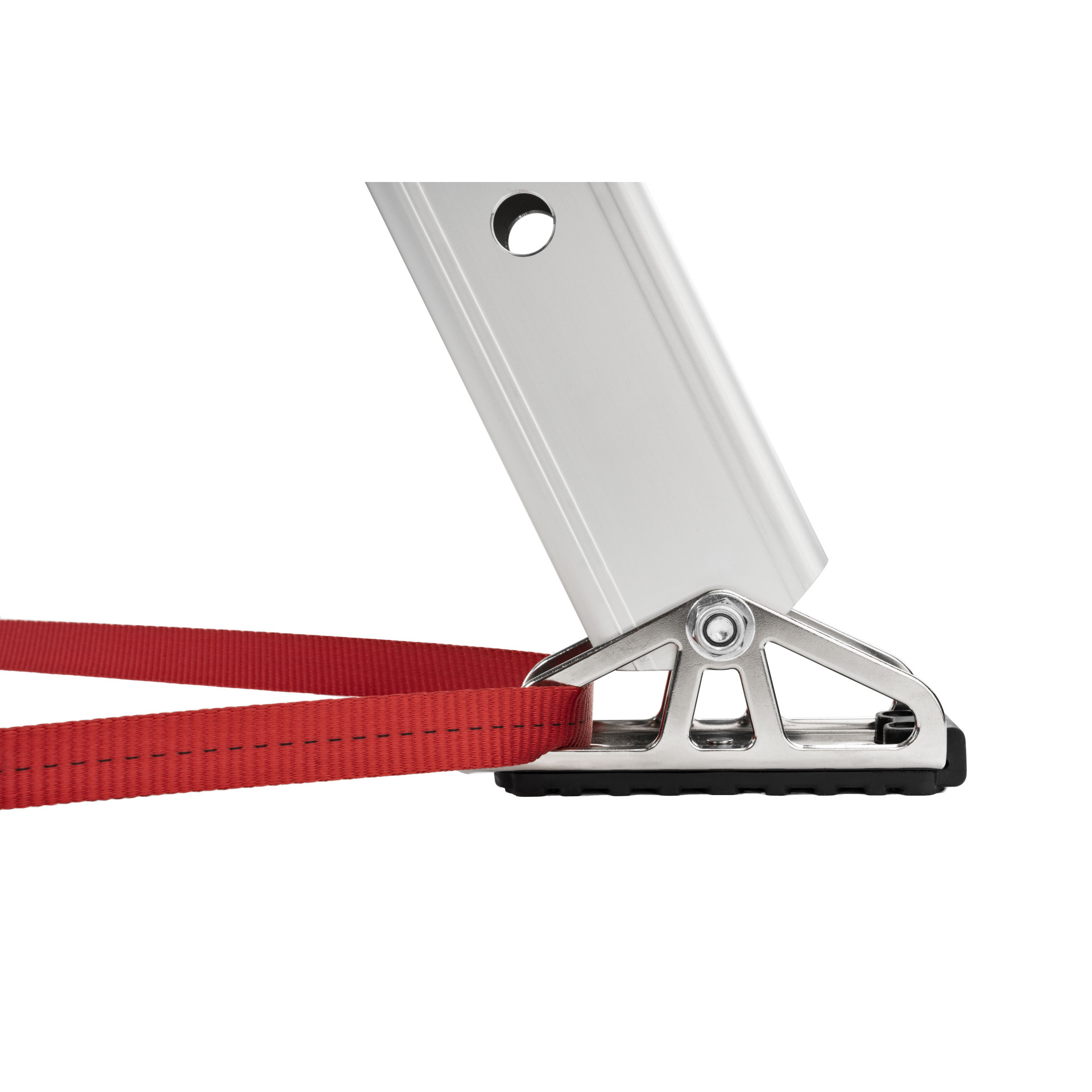

Feet
- Pivoting feet adapt the Triskelion to a variety of surfaces and angles
- Feet have non-slip tread for hard floors and spiked tips for soft earth
Hobble
- Red webbing hobble strap secures all three legs at the base with a single quick-connect Cobra Buckle
- Single webbing strap is lighter than chain and faster than using multiple lengths of material
- Red color is bright and easy to see, drawing attention to the strap and reducing risk of a trip hazard
Bag
- Includes a reinforced carry bag with a diagram indicating proper orientation for balanced single-person transport
- Easily carried by two people using the end handles, or a single person using the padded center shoulder strap

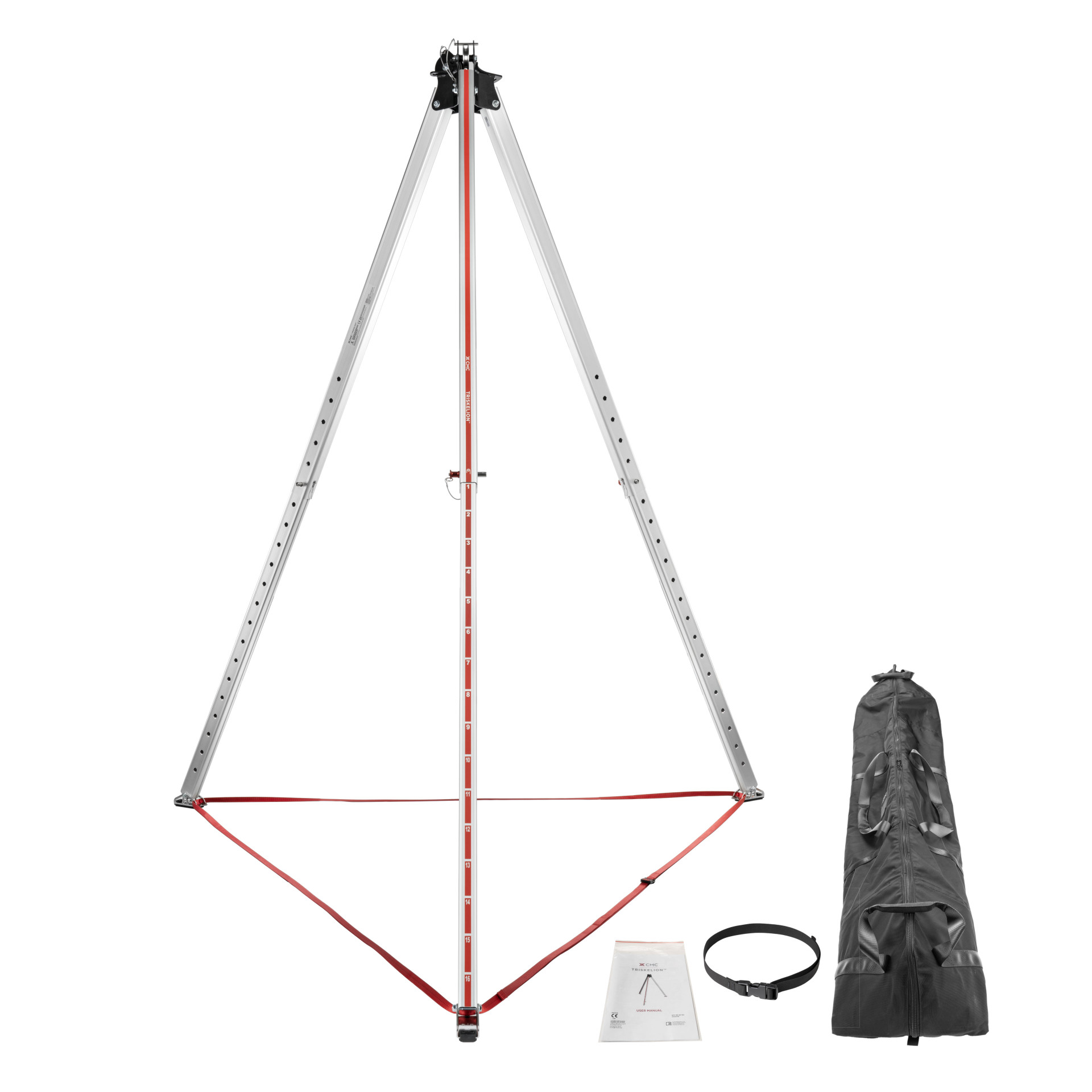

Triskelion Components:
- Triskelion Tripod
- Hobble Strap
- Carry Bag
- Leg Strap
- User Manual
Triskelion Specifications:
- Min Working Height: 1.7 m (5.5 ft)
- Max Working Height: 3.1 m (10 ft)
- Tripod Weight: 32 kg (70 lb)
- Packed Length in Bag: 2.1 m (7 ft)
- Tripod Footprint: Inside Diameter of Feet: Minimum Height: 158 cm (62.2 in), Maximum Height: 282 cm (111 in)
- Tripod Footprint: Outside Diameter of Feet: Minimum Height: 193 cm (76 in) Maximum Height: 317 cm (124.8 in)
- MBS: Attached directly to head: 36 kN (8,093 lbf)
- MBS: Attached to leg over pulley: 22 kN (4946 lbf)
Certification:
- NFPA 1983 (2017 ED) – General Use
- EN 795:2012 Type B for Single Person Use
- CEN/TS 16415:2013 Type B for 2 Person Use
