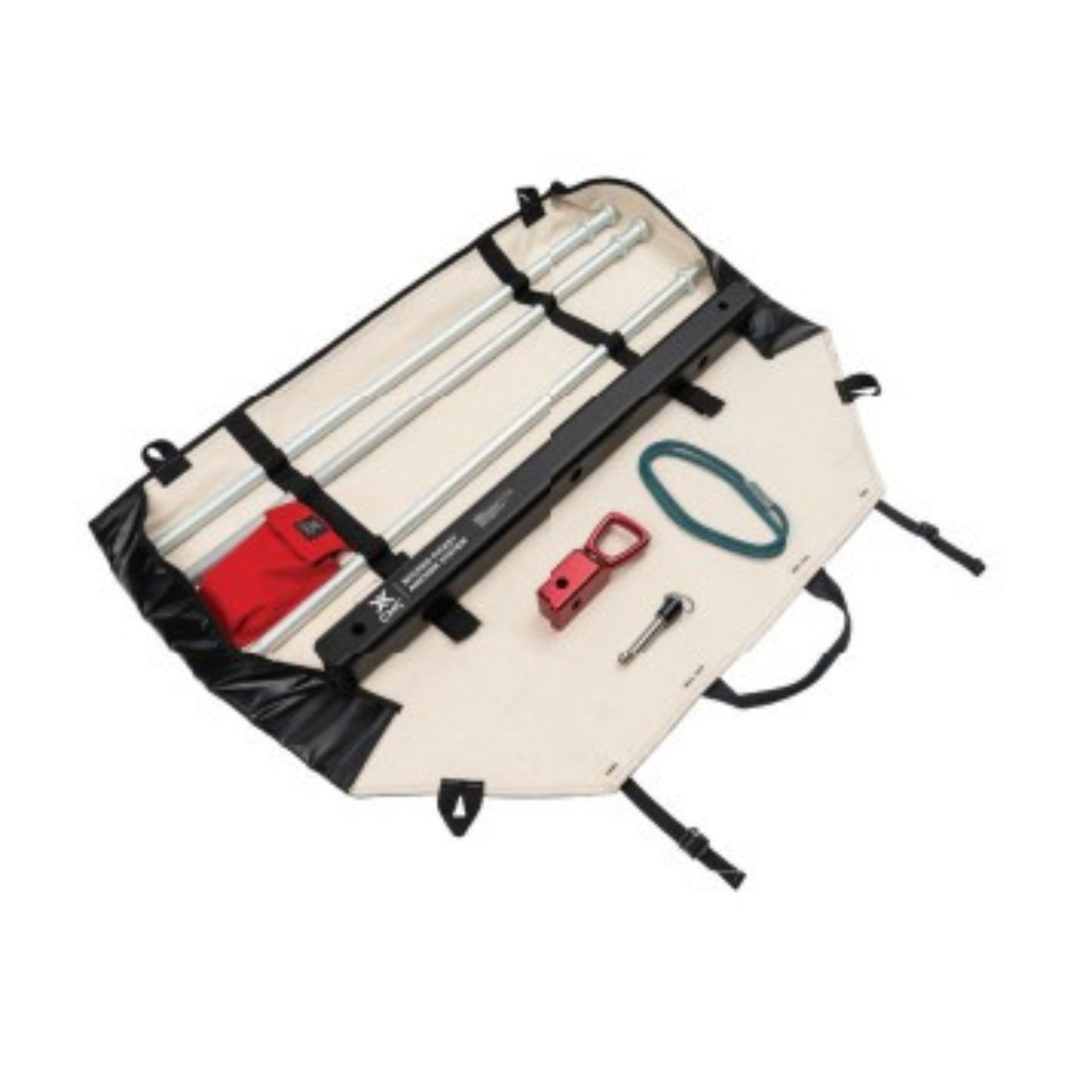

The Wicked Picket Anchor System is a high-strength, rapidly deployed ground anchor. This comprehensive system includes three hardened steel pickets for strength and durability, a forged Picket Plate with precision formed holes for maximum holding strength, a modular Hitch Point for rigging anchors, an Extraction Prusik for picket removal, and a Carry Bag that rolls open and doubles as edge protection.
Features
- High-strength, rapidly deployed ground anchor system.
- Hardened steel pickets provide reliable strength and durability.

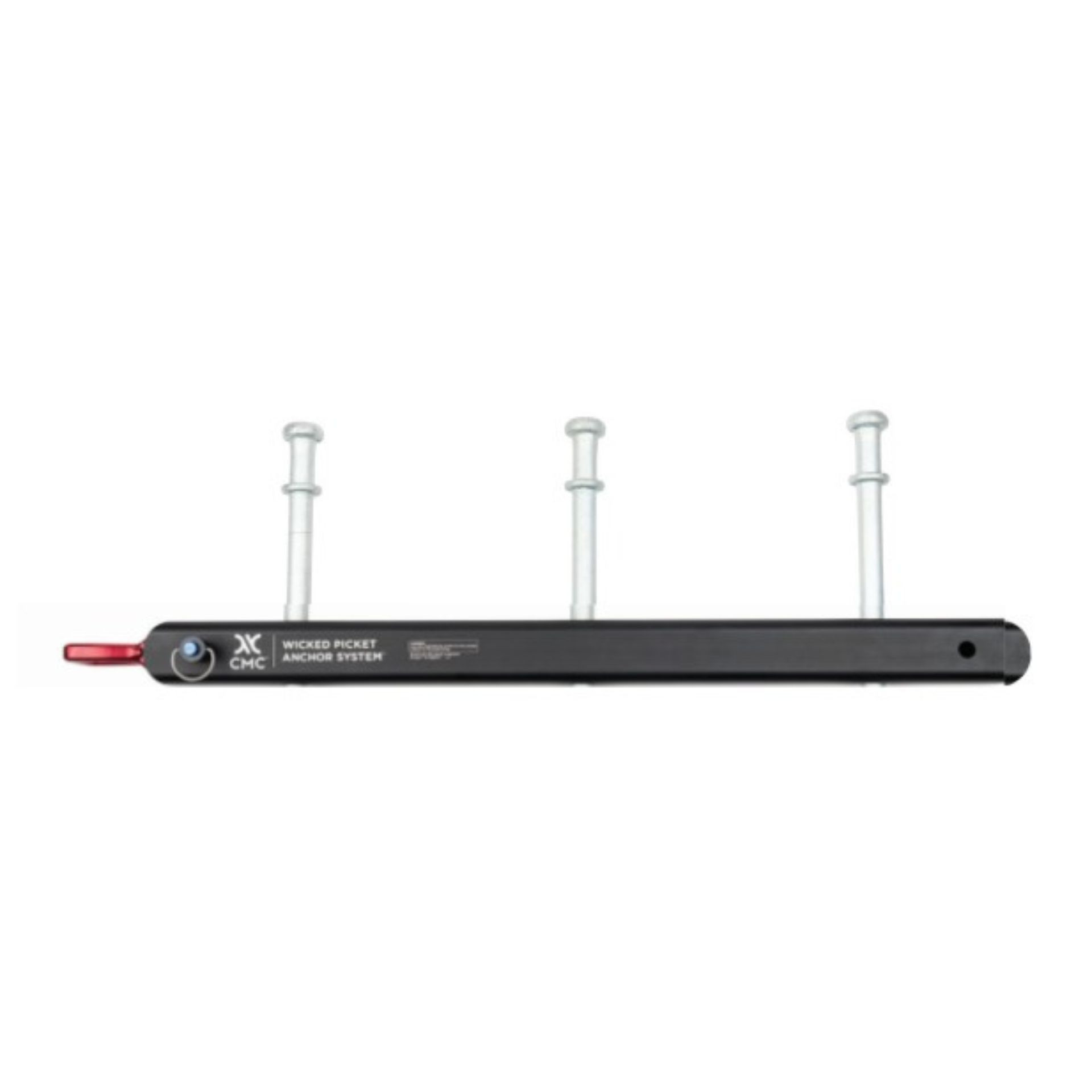

- Forged Picket Plate simplifies anchor installation and maximizes holding capacity.
- Pickets align vertically for quick placement using a sledgehammer.
- Precision-formed holes distribute load to each picket simultaneously.
- Modular Hitch Point attaches to the Picket Plate for easy anchoring. It is compatible with carabiners and textiles including CMC Anchor Straps.
- Hitch Point also connects with 2-inch truck hitches for versatile rigging.
- Extraction Prusik creates a lifting point for efficient picket removal.
- Roll-open Carry Bag simplifies transport and access to components.
- Carry Bag is durable, water resistant, and doubles as edge protection.
- Picket Plate and Hitch Point are each certified to NFPA General Use.
Specifications
- Wicked Picket Anchor System (SKU 102690, MPN 303507)
- Dimensions: 114 x 20 x 13 cm (45 x 8 x 5 in)
- Weight: 20.4 kg (46 lb)
- Hitch Point (SKU102603, MPN 303519)
- Dimensions: 19 x 5 x 7.6 cm (7.5 x 2 x 3 in)
- Weight: .82 kg (1.8 lb)
- Picket Plate (SKU 102605, MPN 303517)
- Dimensions: 91.4 x 7 x 7 cm (36 x 2.7 x 2.7 in)
- Weight: 4.2 kg (9.2 lb)
- Steel Picket (SKU 102604, MPN 303525)
- Dimensions: 107 x 2.5 cm (42 x 1 in)
- Weight: 4.4 kg (9.6 lb)
- Quick-Release Pin (SKU 102602, MPN 303511)
- Dimensions: 11.4 x 2.5 cm (4.5 x 1 in)
- Weight: .2 kg (.4 lb)
- Carry Bag (SKU 102601, MPN 432057)
- Dimensions: 86 x 117 cm (34 x 46 in)
- Weight: 2.3 kg (5.1 lb)
