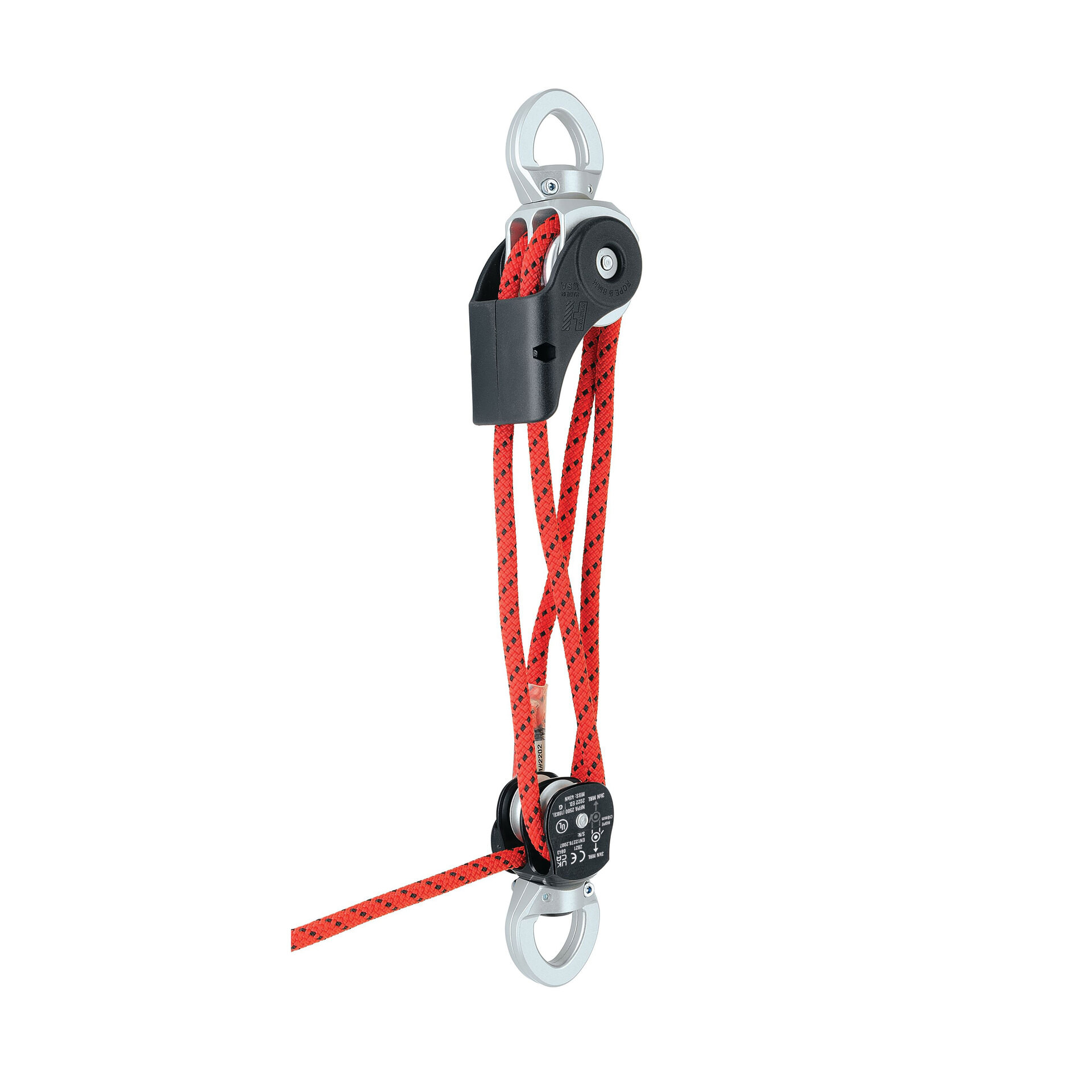

Wingman combines a ratcheting sheave to stop the rope with a composite handle or wing the operator can open and close under load for a well-modulated ‘fine-tuned’ release. Under full load even with the sheaves pulled completely together, the system may be released quite easily--with full control using one hand on the wing and the other tending the line.
The Wingman has a minimum overall length of just 8” which means more clearance under a tripod and more throw during a pick-off. The device is also ideal for creating adjustable directionals, work positioning and much more. It may be configured as a 4:1 or 5:1 mechanical advantage system. These revolutionary features plus ball bearings within the sheaves that maximize efficiency for raising and lowering loads of up to 681lbs, makes Wingman a simple tool you will always want at your side.
Meets the manufactured system requirements of NFPA 1983, incorporated in the 2022 Edition of NFPA 2500. The H-86666 double becket block portion of the WingMan is CE and UKCA certified. H-86666 Double pulley with side becket Certification: EN 12278.2007. This pulley is designed to be used in a system for preventing a fall from height. When required, this product must be used with a comprehensive fall protection system in accordance with EN 363 and a fall arrest harness that meets EN361. Personal Protective Equipment Regulations (Regulation 2016/425) and the Personal Protective Equipment (Enforcement) Regulations 2018, as amended.

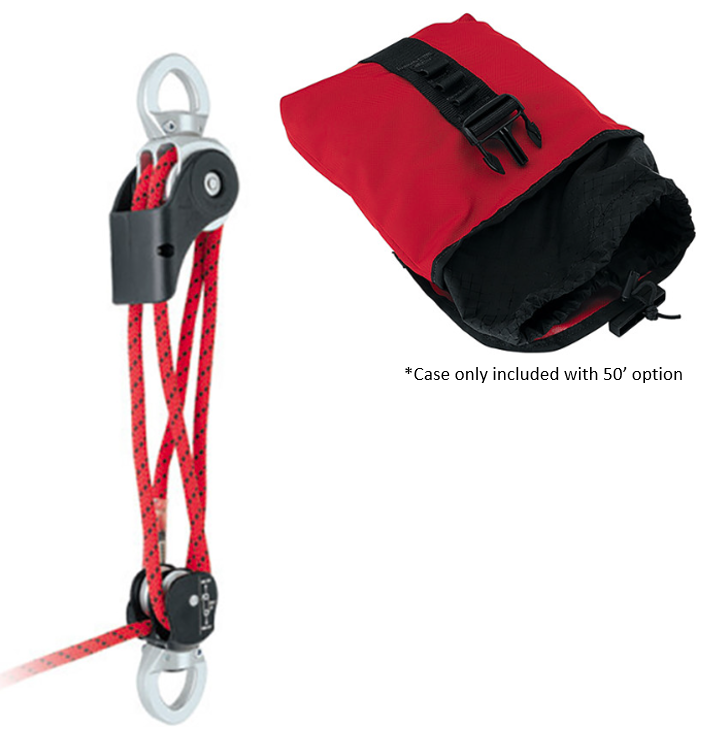

Available with 50' length only: Nylon case is industrial-grade ballistic nylon with a locking buckle. The case includes a drawstring and drain grommets to separate the unit and line for proper deployment and line drying.
Available in: 50', 150', and 250' lengths
- Breaking load (kN) - 45 kN
- Breaking load (lb) - 10116 lb
- Maximum working load (lb) - 647 lb
- Maximum working load (kg) - 300 kg
- Slip Load (lb) - 900 lb
- Slip Load (kN )- 4 kN
