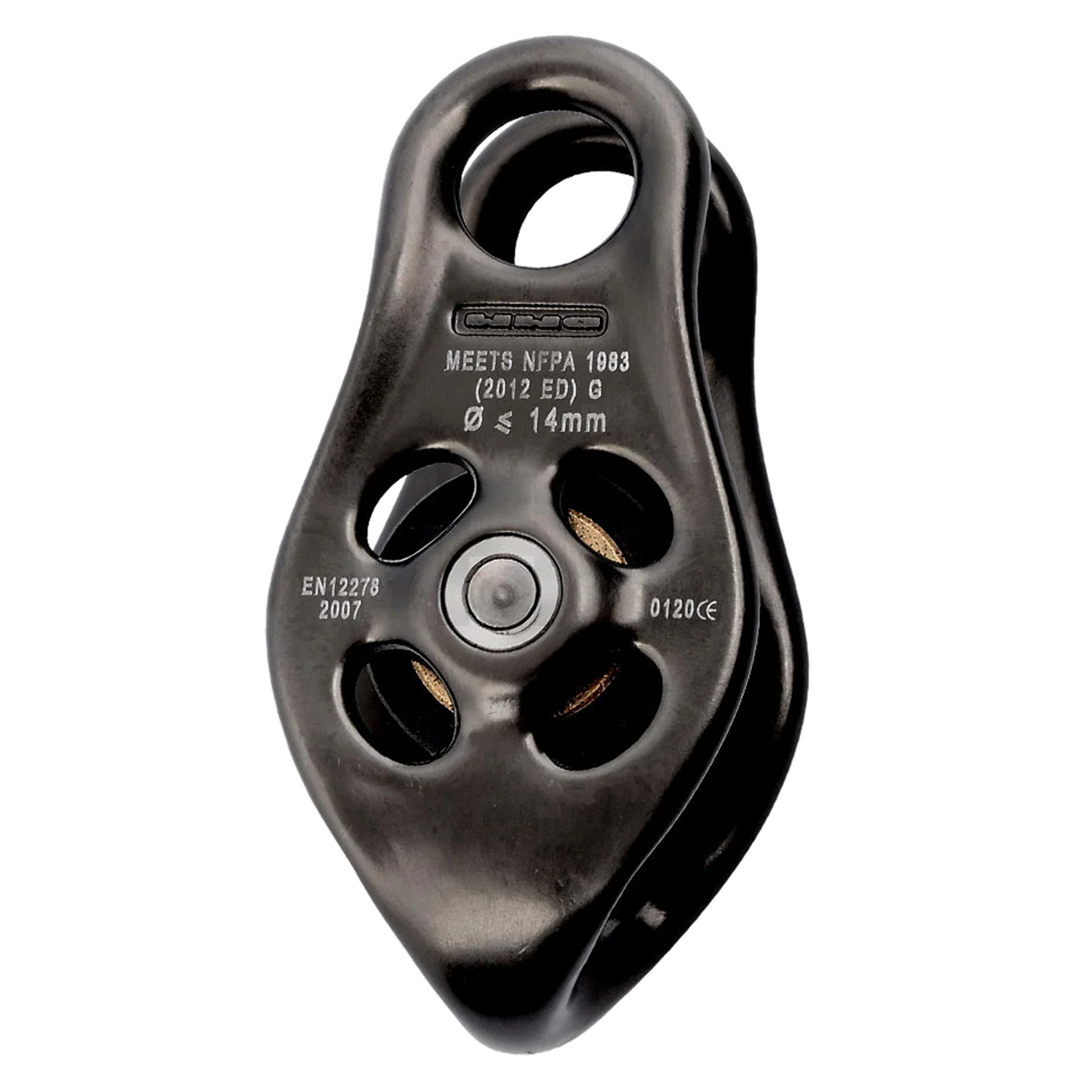

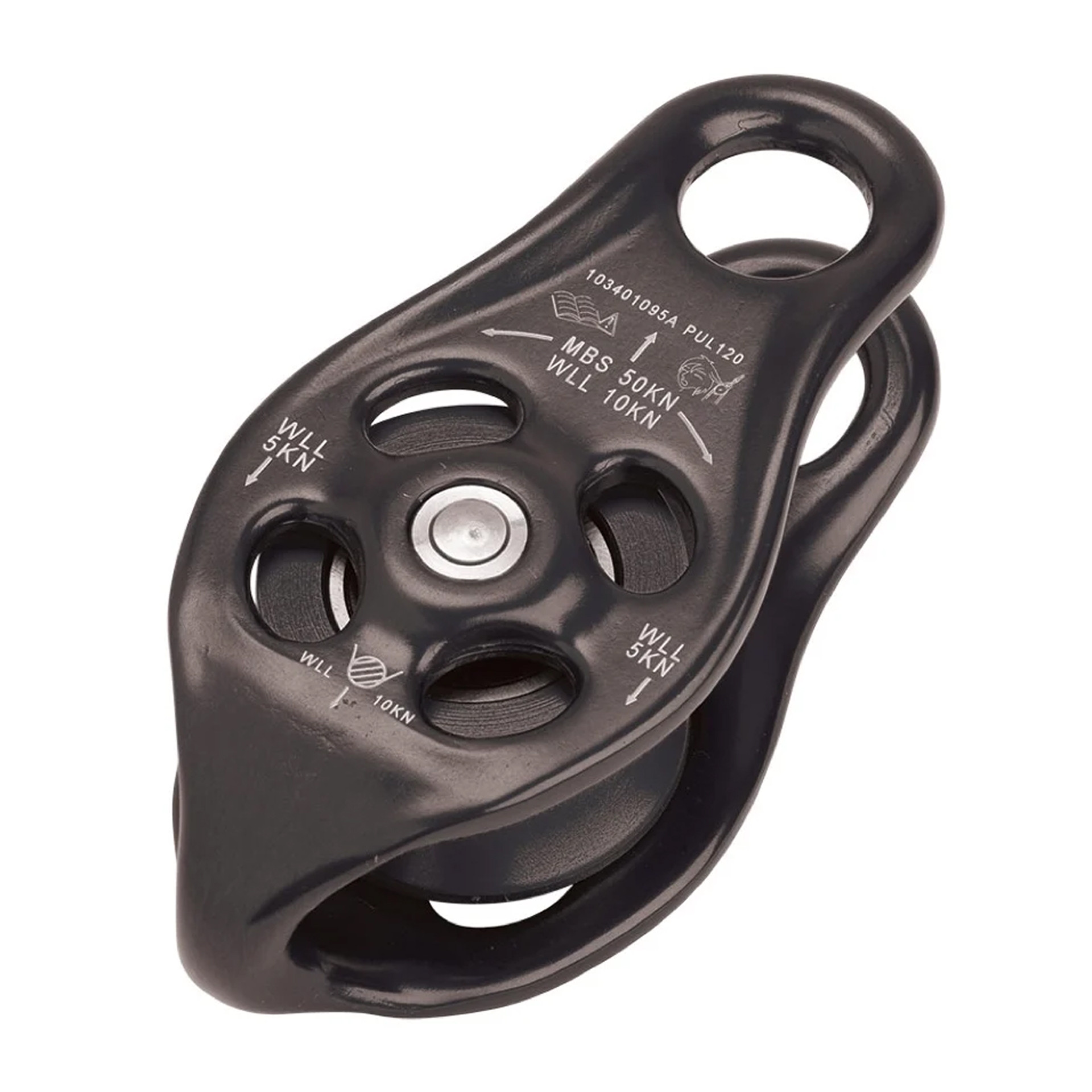

The Pinto Rig pulley has hot forged body that is kind to ropes however they run. Fairlead flares reduce friction when the rope isn't running perfectly, while a full strength becket gives attachment options that give the Pinto versatility.
Specifications
- Product Name: Pinto Rig Pulley
- Product Code: PUL120MG
- Color: Mat Grey
- Dimensions: 100 x 48 x 37mm
- Weight: 162g
- Certification: NFPA 2500 (1983) 2022 ED (G), EN 12278:2007
- MBS: 50kN
- WLL: 10kN
- Max. Rope Diameter: 16mm
