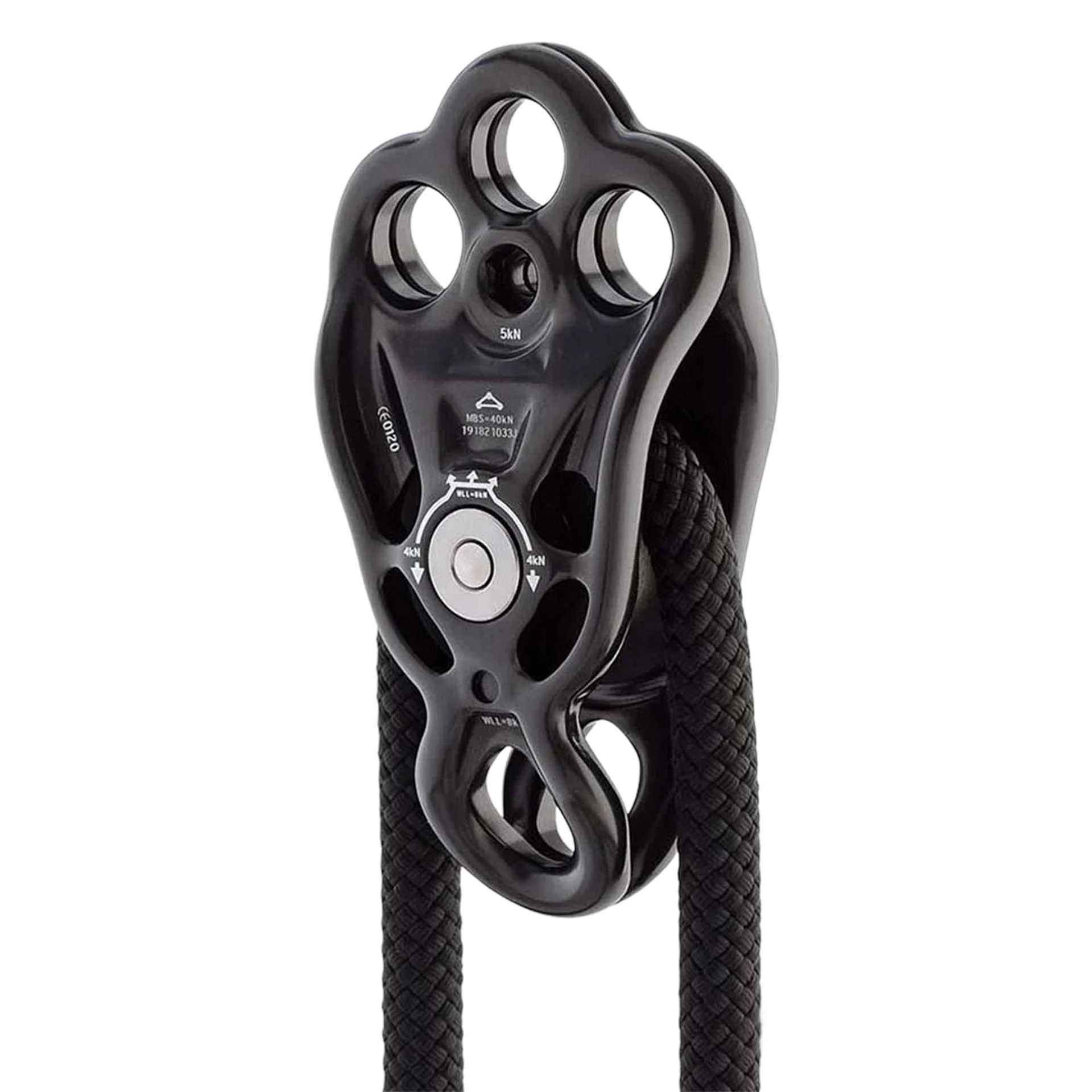

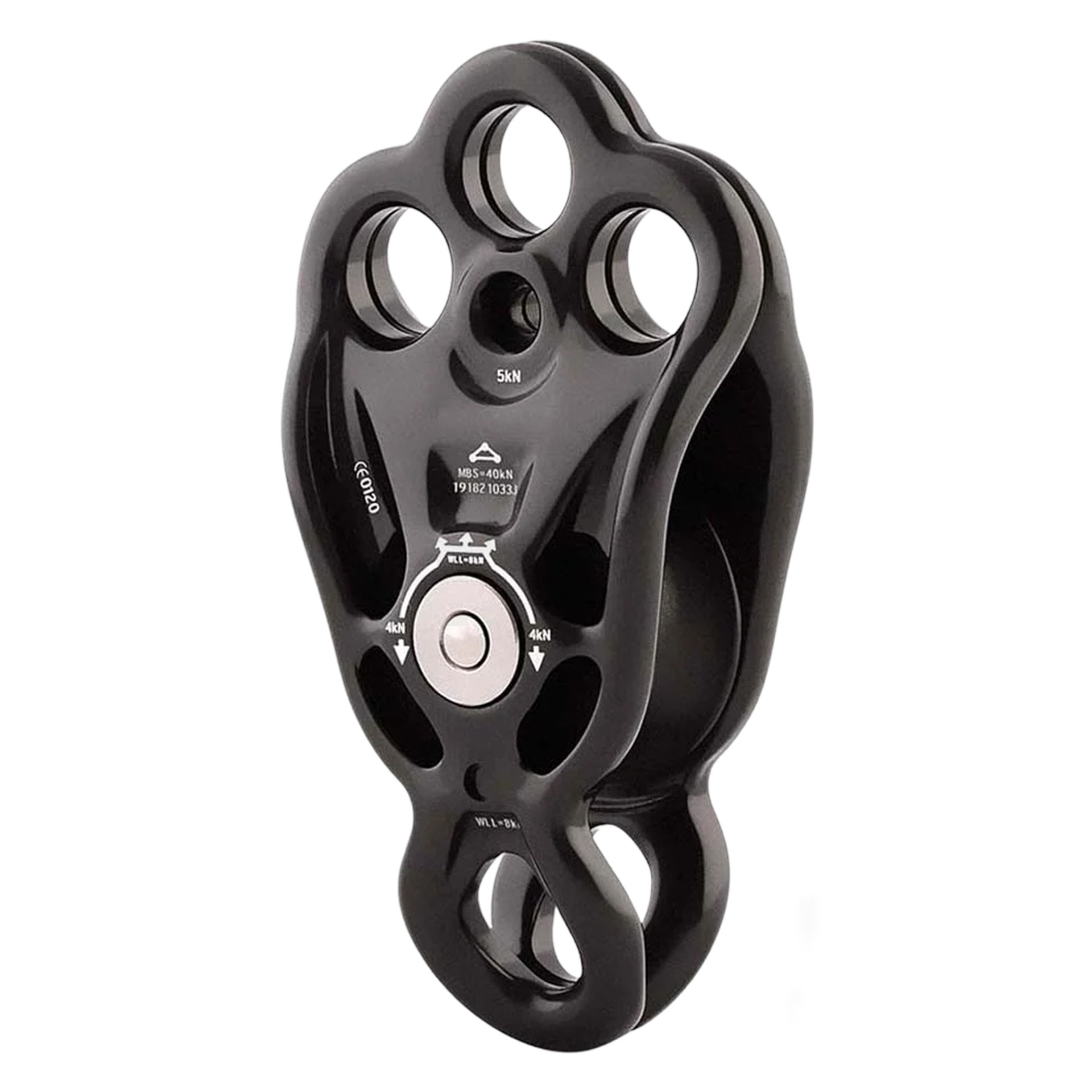

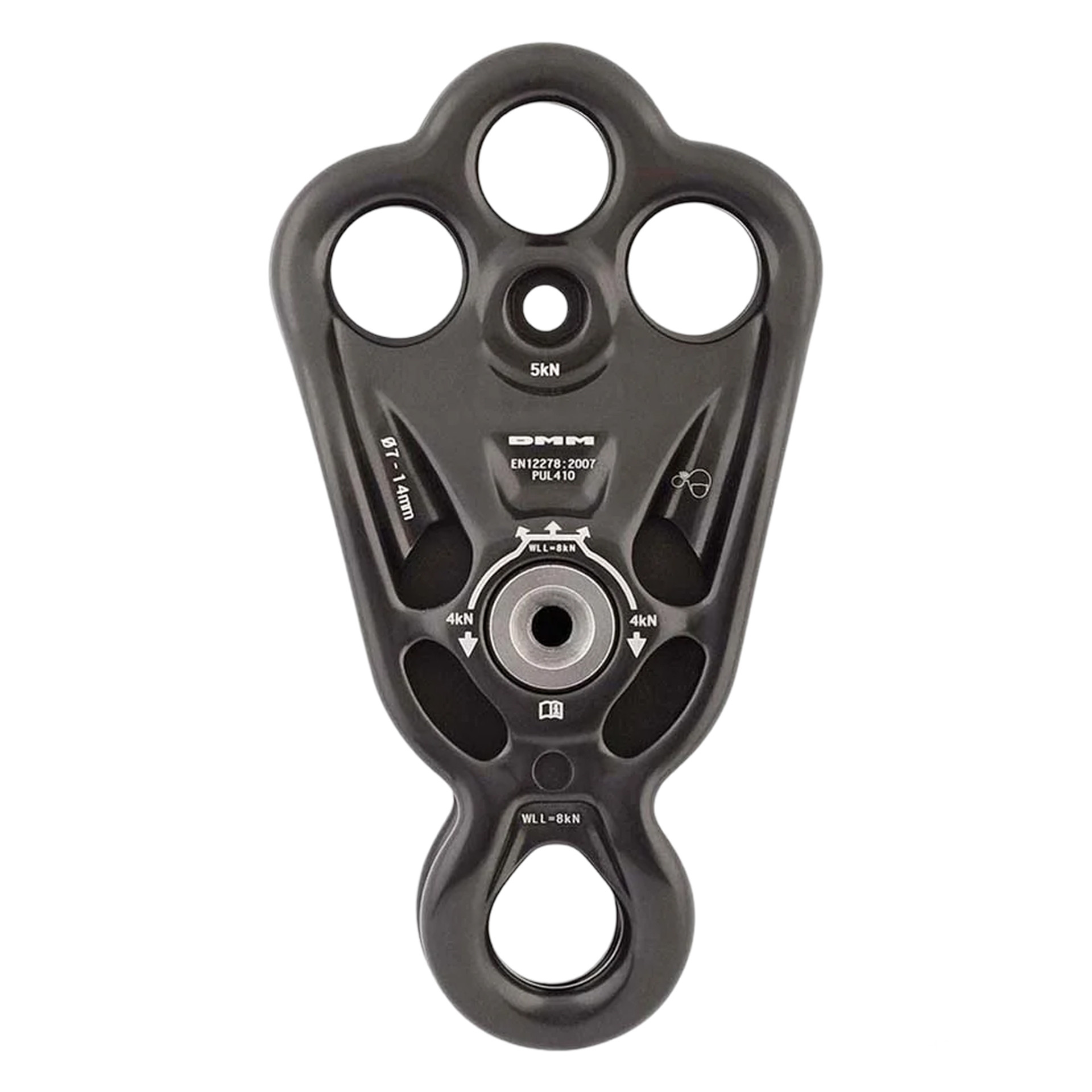

An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.
The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.
Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.
The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.
| Product Name |
Product Code |
Rope Range |
Dimensions |
Sheave Diameter |
Weight |
WLL |
MBS |
Certification |
| Rigger Pulley |
PUL400MG |
7-14mm |
68 x 94mm |
28mm |
176g |
8kN |
40kN |
EN12278:2007 |
| Rigger Pulley Becket |
PUL410MG |
7-14mm |
68 x 124mm |
28mm |
198g |
8kN |
40kN |
EN12278:2007 |
