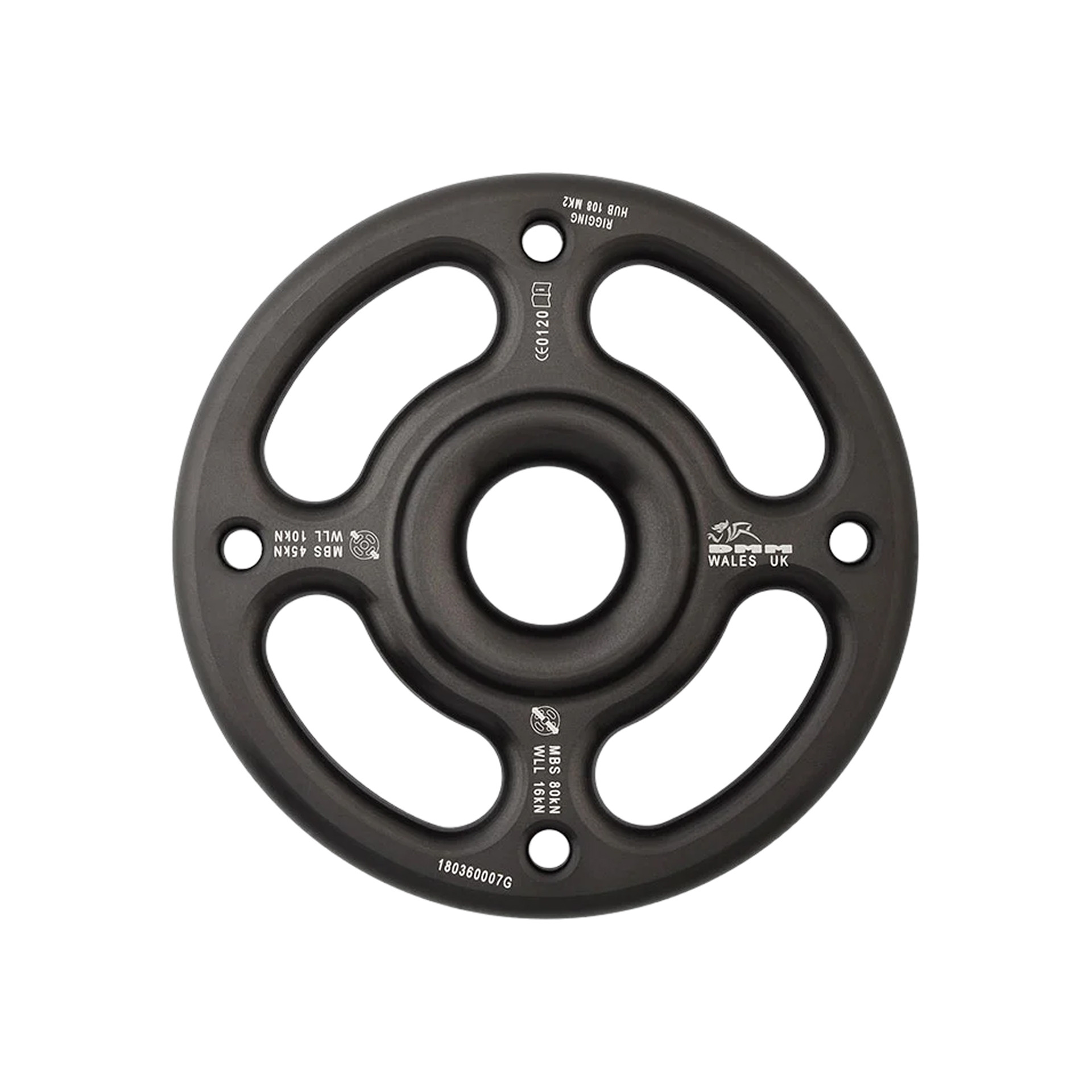

Complex 3D rigging focused onto a single anchor. The DMM rigging hub can be used to form a super strong centralized anchor point for use in treework, rope access and rescue. Radiused surfaces throughout allow direct rope or textile attachment - this includes running ropes, girth hitched slings, tied in prussiks, etc. Use of multiple 3D anchors often allow the hubs to be used as a lightweight alternative to a tripod for edge management or targeted lifting points e.g. over a manhole or cave entrance. Certified to our in-house Linking Components standard.
| Product Name |
Product Code |
Color |
MBS |
WLL |
Dimensions |
Weight |
Certification |
| Rigging Hub Small |
ARB-HUB108 |
Purple |
80/45kN |
16/9kN |
119mm |
260g |
Manufacturers Technical Specification QAP99 (CE) |
| Rigging Hub Large |
ARB-HUB175 |
Purple |
150/45kN |
30/9kN |
169mm |
550g |
Manufacturers Technical Specification QAP99 (CE) |
| Rigging Hub Small |
ARB-HUB108MG |
Matt Grey |
80/45kN |
16/9kN |
119mm |
260g |
Manufacturers Technical Specification QAP99 (CE) |
| Rigging Hub Large |
ARB-HUB175MG |
Matt Grey |
150/45kN |
30/9kN |
169mm |
550g |
Manufacturers Technical Specification QAP99 (CE) |
