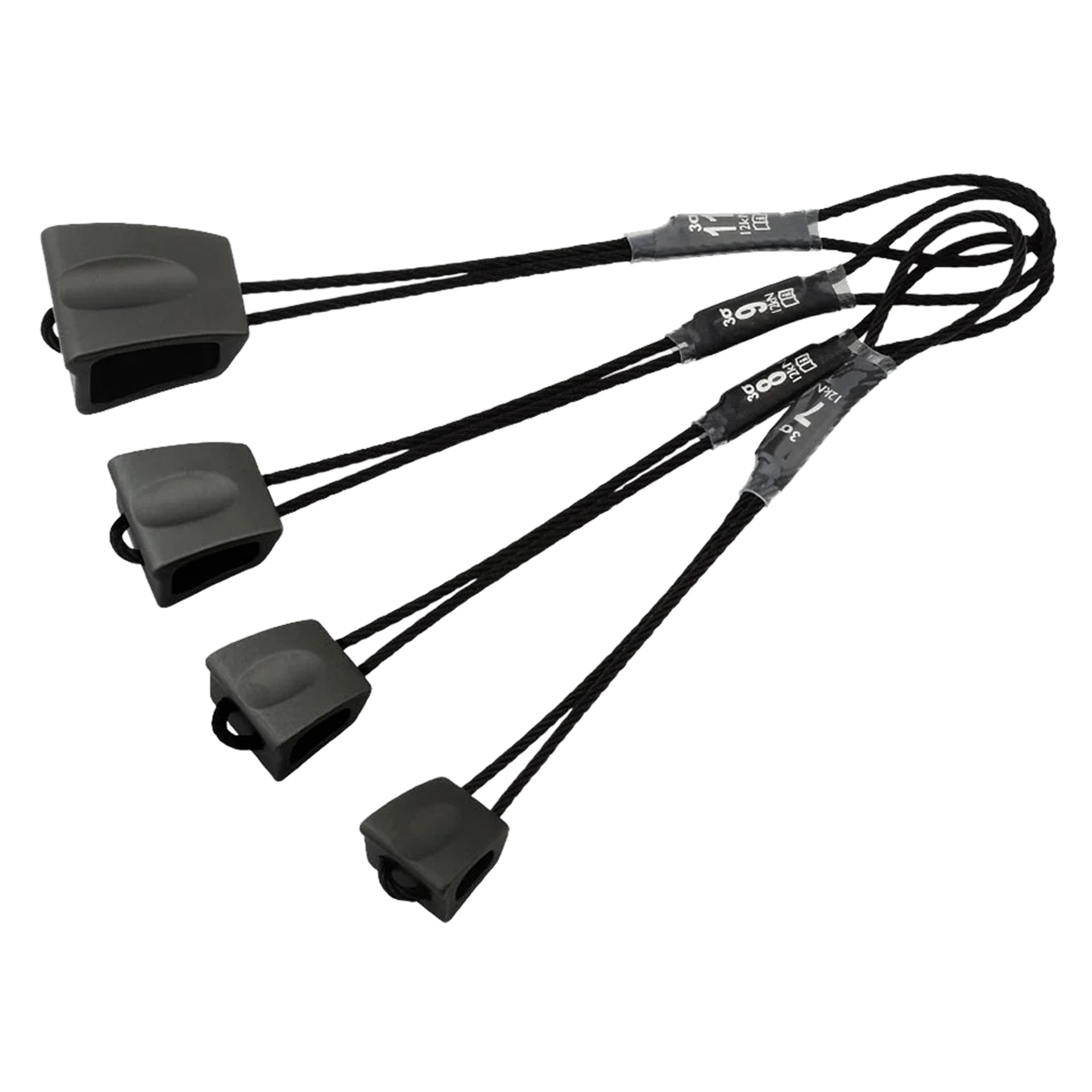

The large contact surface area of the Micro Wallnuts allows them to spread loads over a greater area of rock, decreasing the chance of the rock failing.
They feature straight sides to give alternative placement options to Helix's other alloy micro-protection. Used in conjunction with Peenuts they provide comprehensive protection for small cracks in friable rock.
| Product Name |
Product Code |
Color |
Weight |
Certification |
Strength |
Range |
| Micro Wallnut Size 00 |
A1600AA |
Gold |
5g |
EN 12270: 2013 |
2kN |
4.0 / 9.7mm |
| Micro Wallnut Size 0 |
A1610AA |
Blue |
6g |
EN 12270: 2013 |
2kN |
4.6 / 10.8mm |
| Micro Wallnut Size 1/2 |
A1658AA |
Red |
9g |
EN 12270: 2013 |
4kN |
5.1 / 11.7mm |
| Micro Wallnut Size 3/4 |
A1659AA |
Grey |
10g |
EN 12270: 2013 |
6kN |
5.9 / 12.6mm |
| Micro Wallnut Set 00-3/4 |
A1600/59AA |
Assorted |
30g |
EN 12270: 2013 |
2 - 6kN |
4.0 - 12.6mm |
| Micro Wallnut Size 00 |
A1600MG |
Matt Grey |
5g |
EN 12270: 2013 |
2kN |
4.0 / 9.7mm |
| Micro Wallnut Size 0 |
A1610MG |
Matt Grey |
6g |
EN 12270: 2013 |
2kN |
4.6 / 10.8mm |
| Micro Wallnut Size 1/2 |
A1658MG |
Matt Grey |
9g |
EN 12270: 2013 |
4kN |
5.1 / 11.7mm |
| Micro Wallnut Size 3/4 |
A1659MG |
Matt Grey |
10g |
EN 12270: 2013 |
6kN |
5.9 / 12.6mm |
| Micro Wallnut Set 00-3/4 |
A1600/59MG |
Matt Grey |
30g |
EN 12270: 2013 |
2 - 6kN |
4.0 - 12.6mm |
