The system has been military trialed and tested and is now in use in operations internationally.
The system comprises of two 30m finger reels, loaded with 2mm Aramid cord (rated to 2dN / 200kg) that can be easily joined together to allow for 60m of line capability.
The Aramid cord is also heat resistant up to 500 degrees.

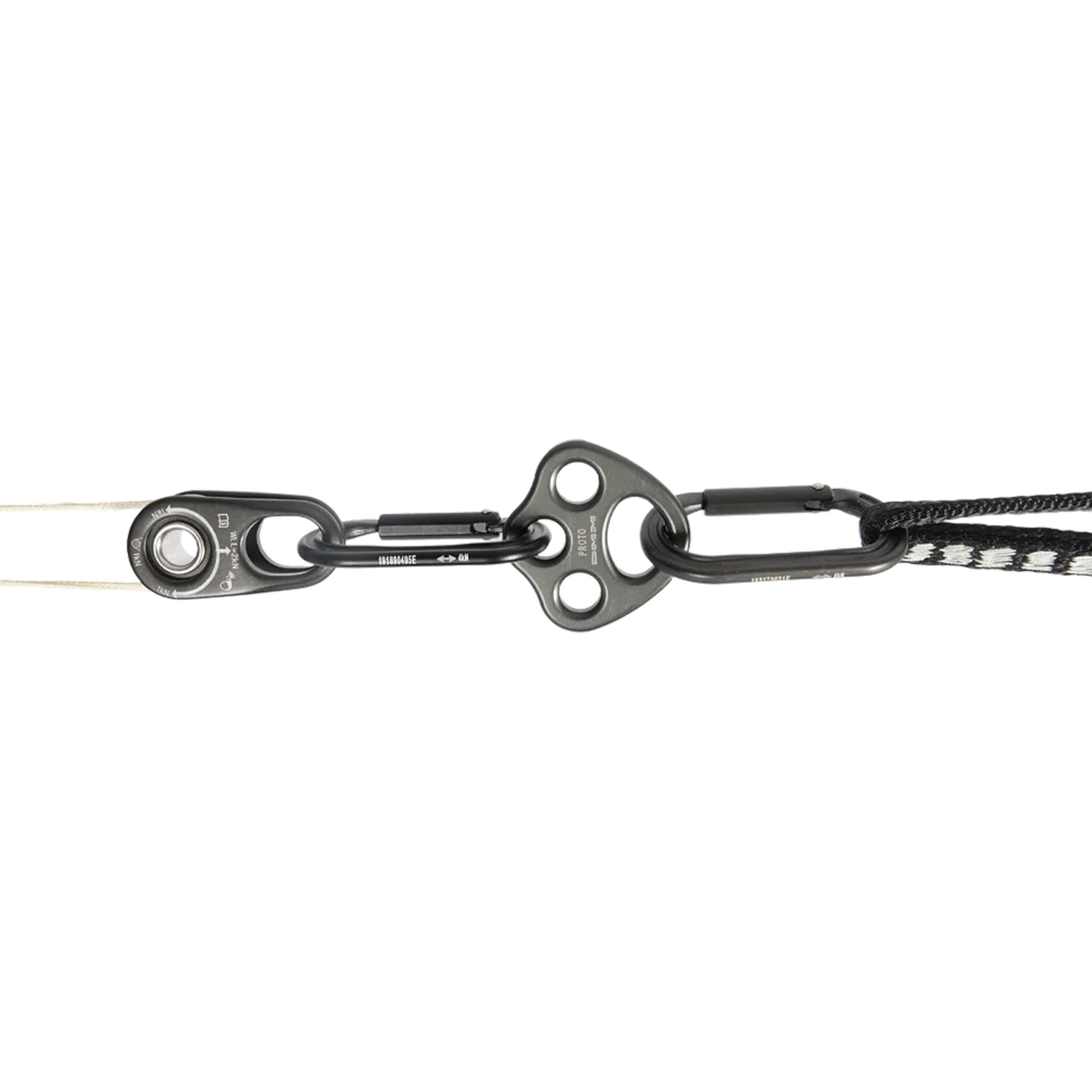

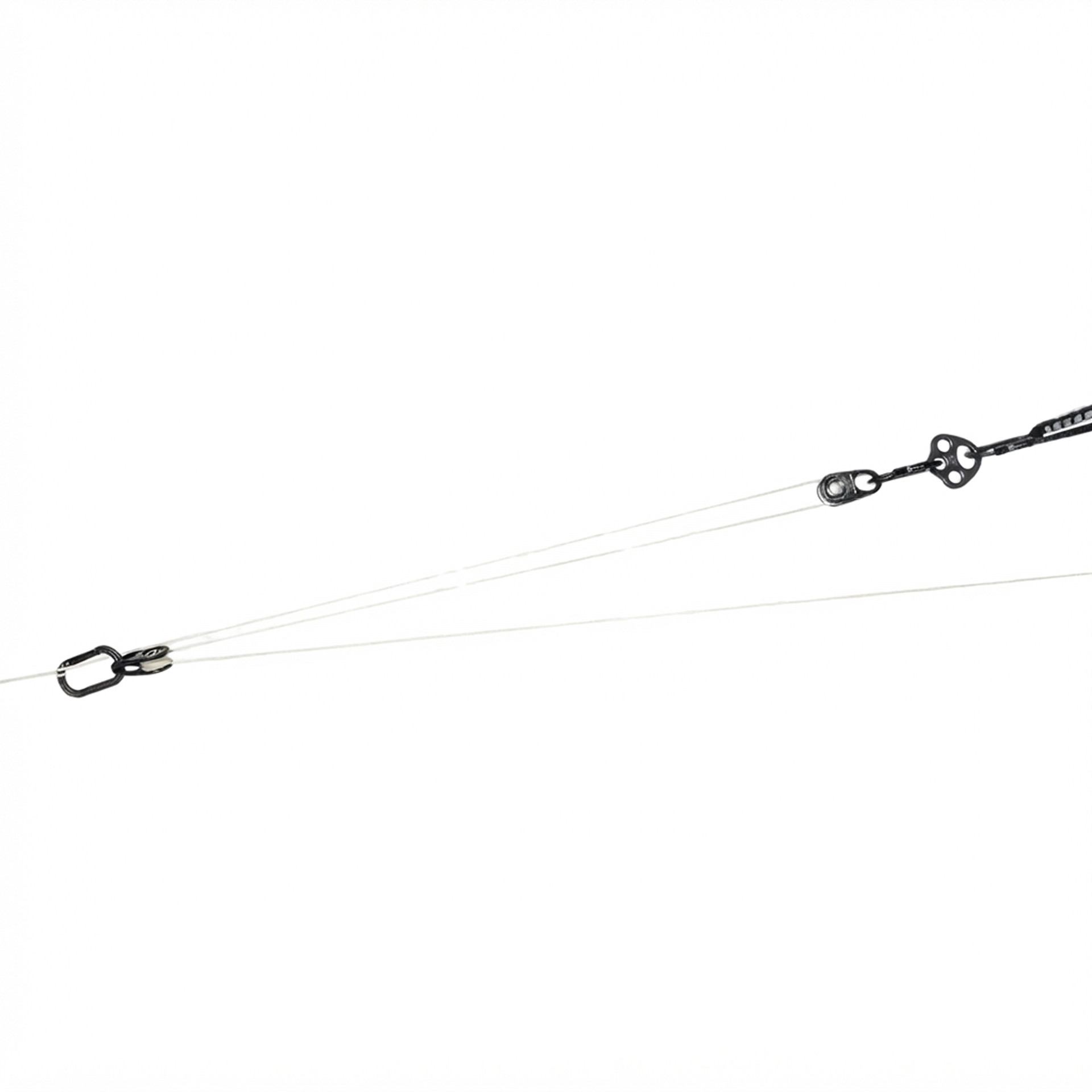

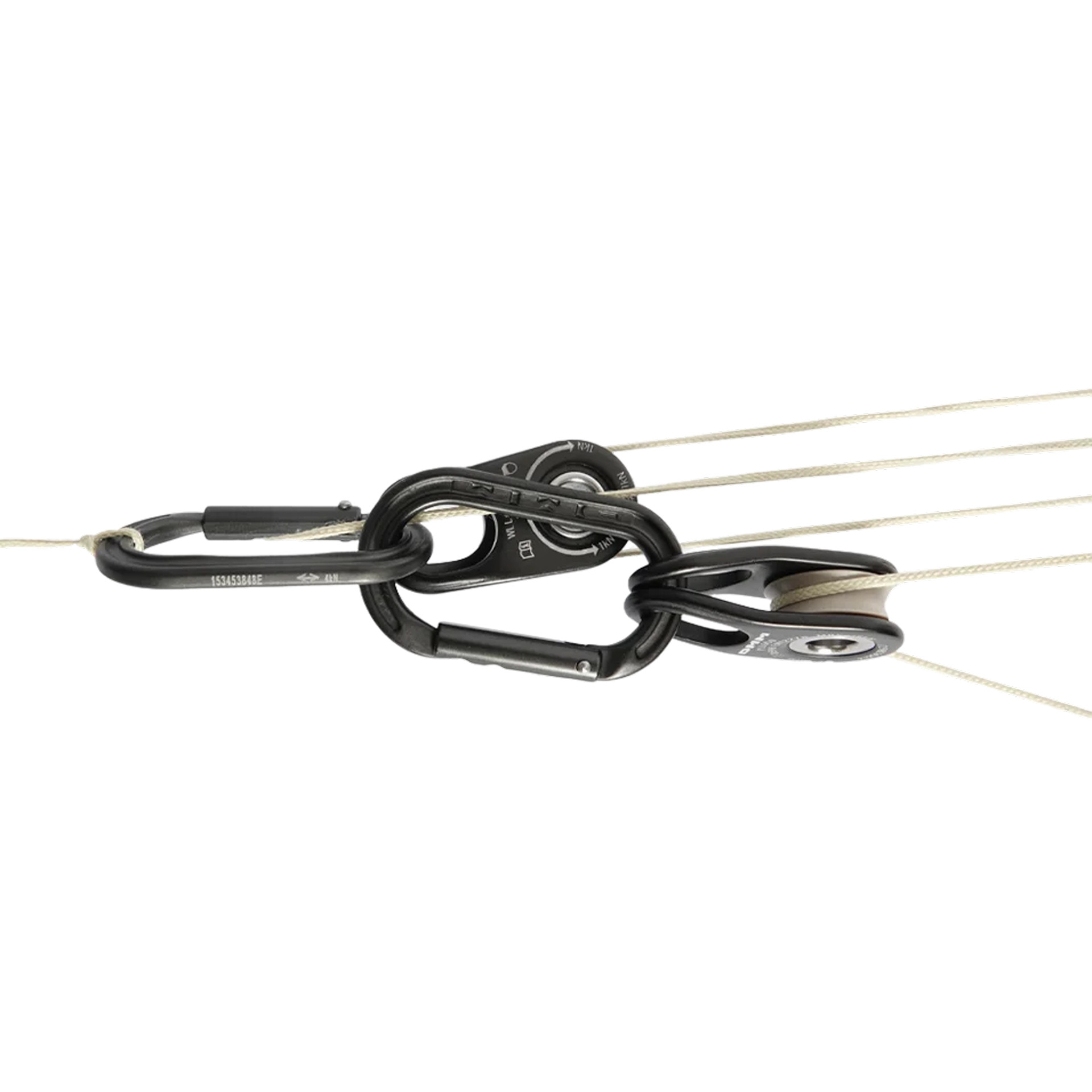

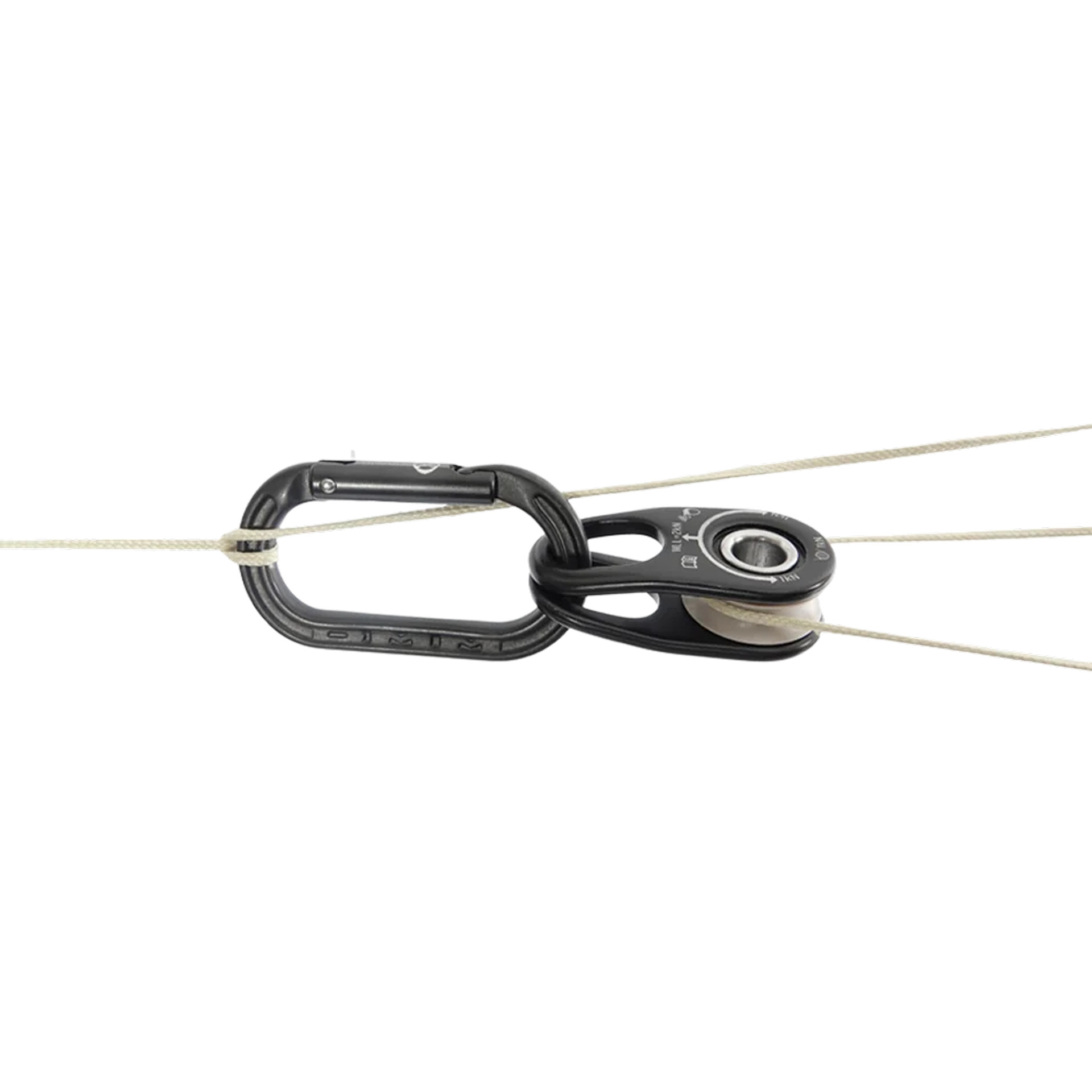

One of the major elements of the system (aside from the lightweight aramid reel) are the micro-pulleys and XSRE carabiners. These are so small and strong that you can set up a 5:1 mechanical advantage in the palm of your hand, which is simply incredible and more than capable of pulling at the maximum weight limit of the cord (which again is 200kg).

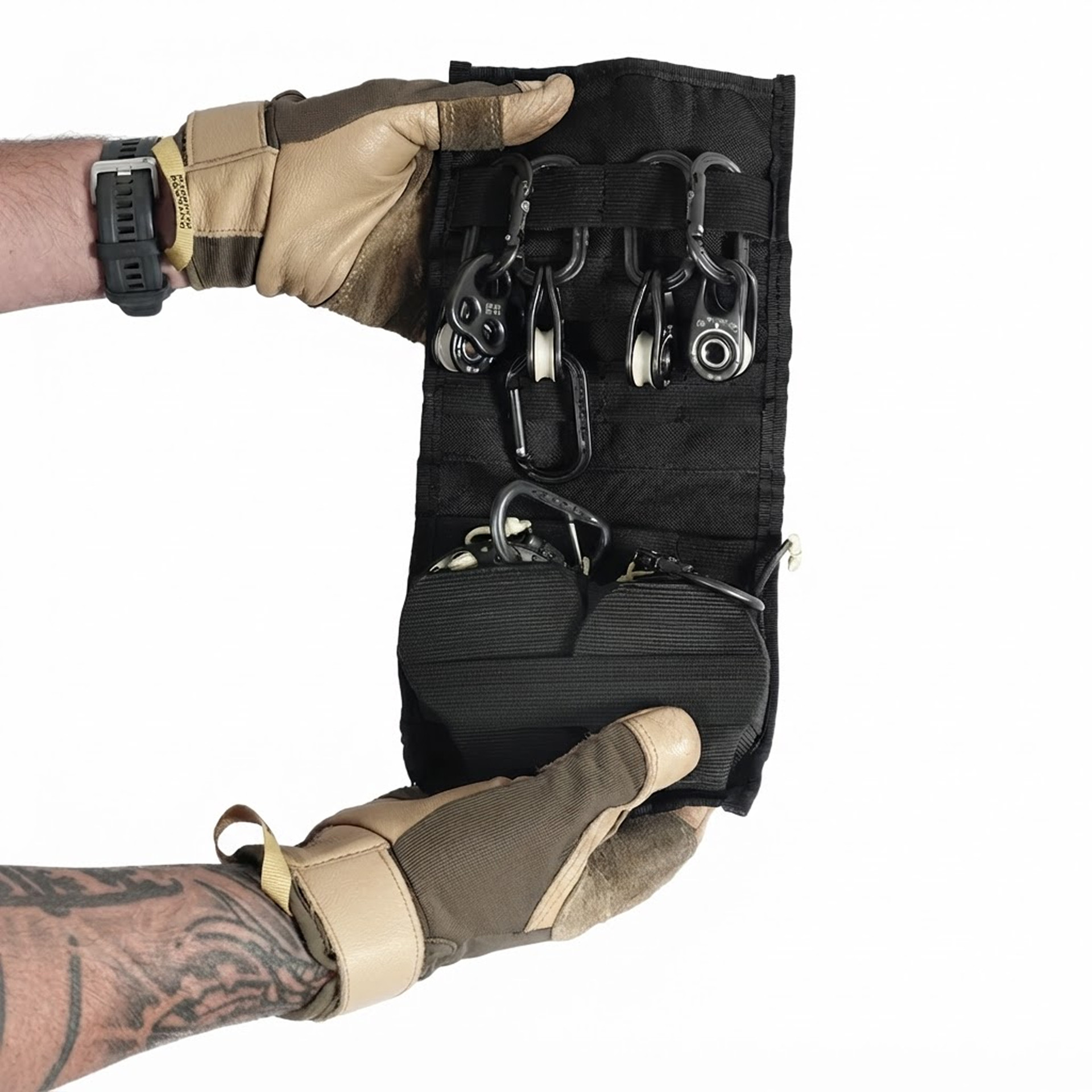

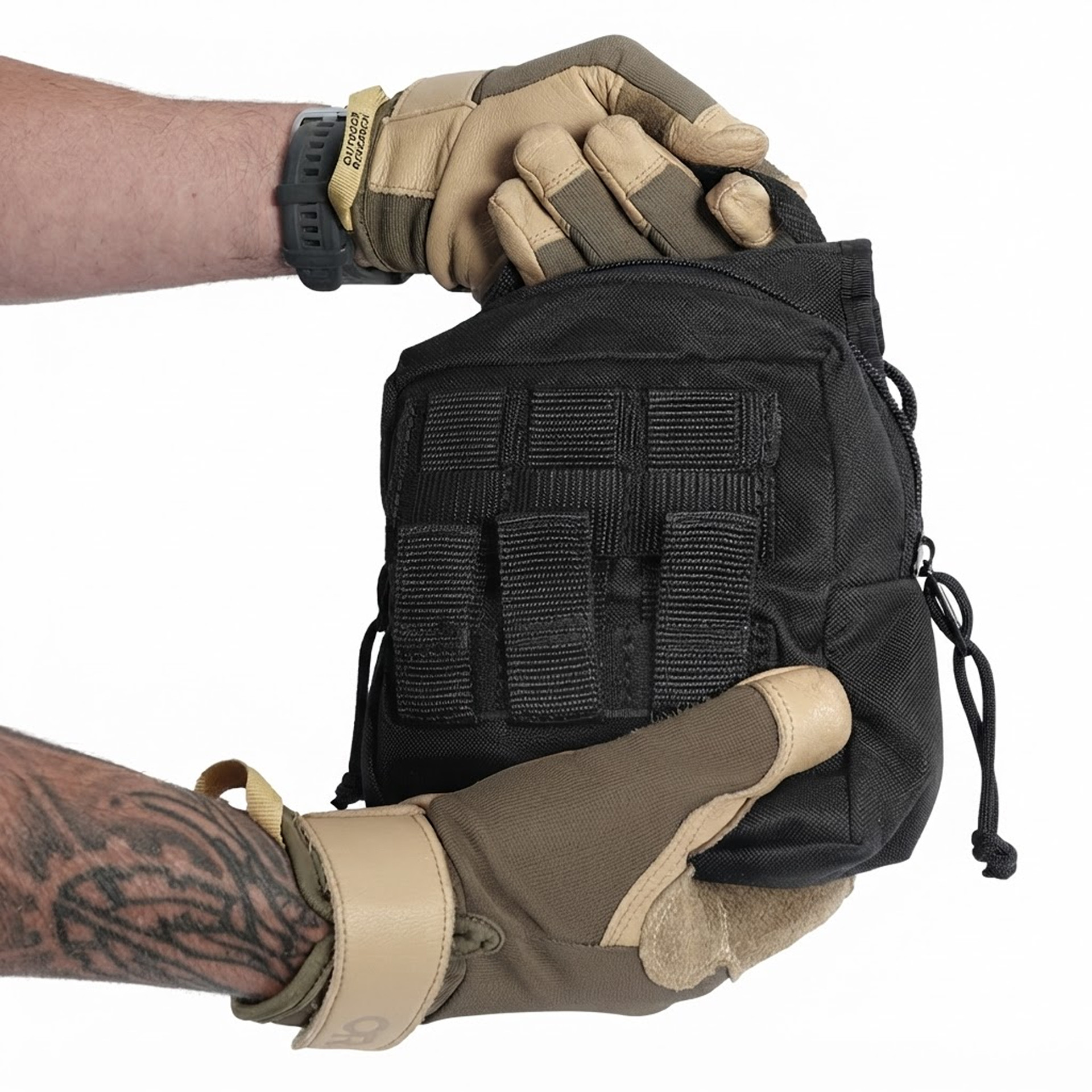

The pouch containing the kit is attached to the operatives belt using standard molle, with an internal sleeve holding the system elements. When removed from the outer pouch and laid flat, the sleeve provides a clean working space ready to organize your line, anchor and rigging points.

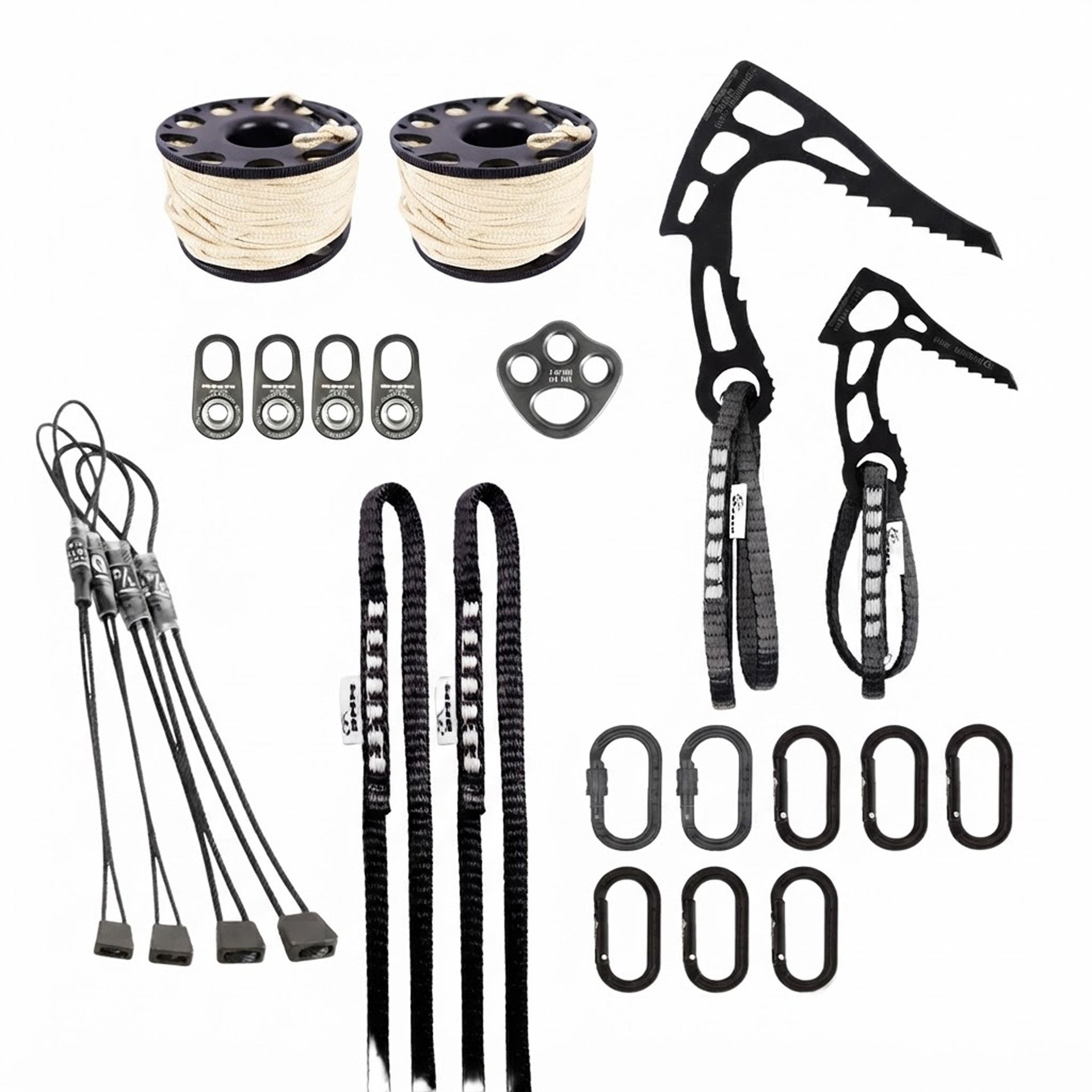

| Product Name | Product Code | Quantity | Weight |
|---|
| Helix Lightweight IED System | HX--IED30M | | |
| 890g | | | |
| Aramid Finger Reel (with 30m aramid 2mm cord and XSRE captive bar) | HX-LRP002 | 2 | 140g |

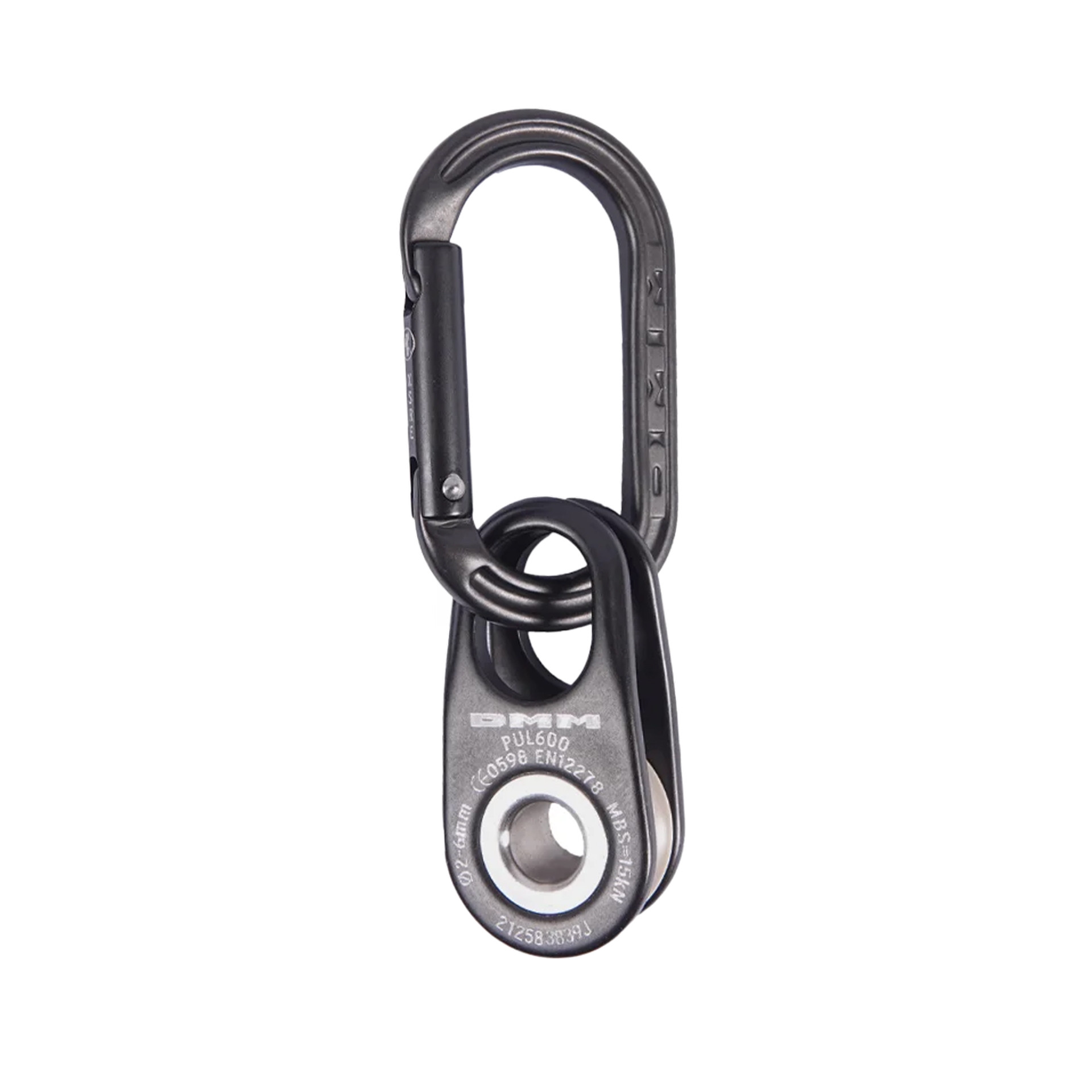

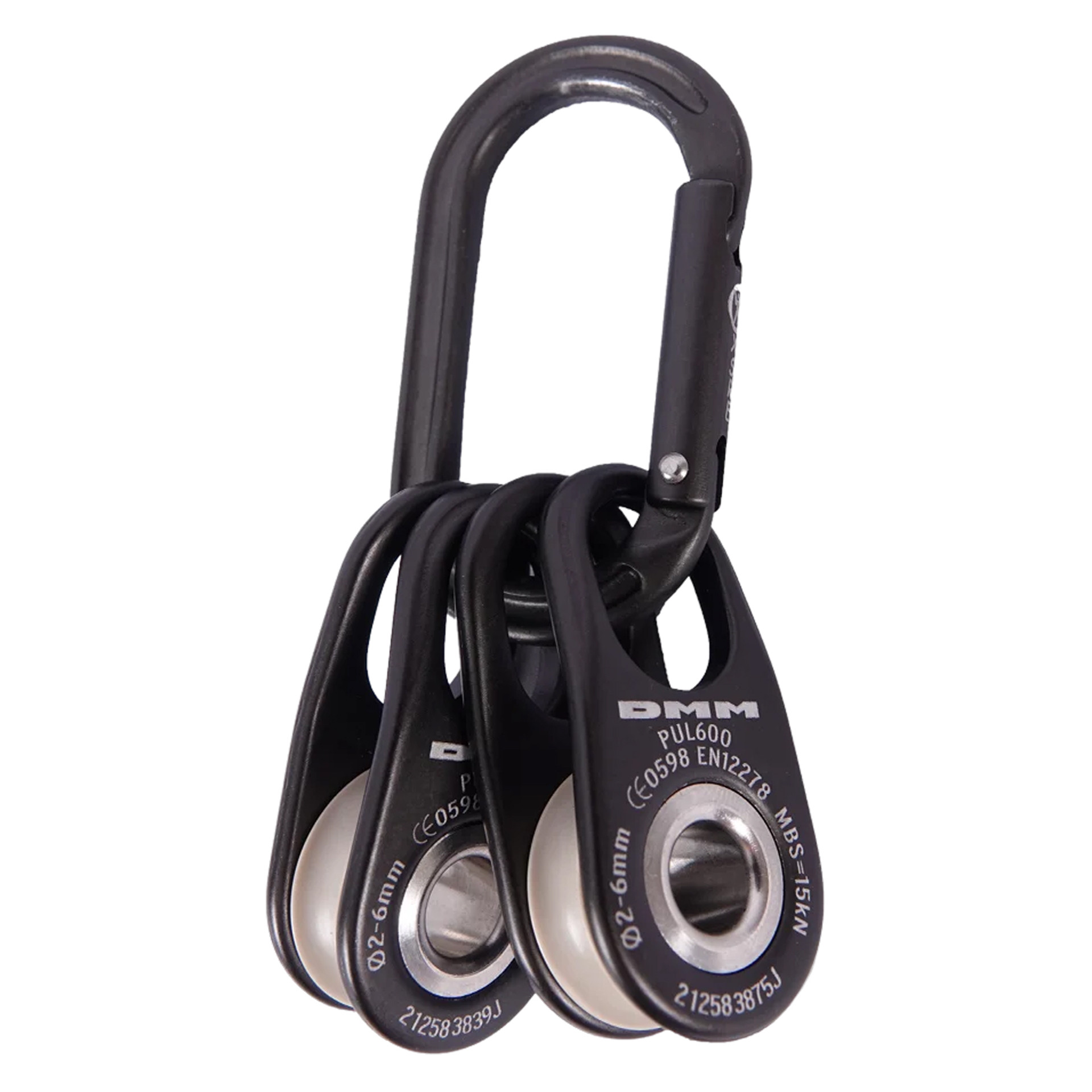

| DMM Micro Pulley | PUL600 | 4 | 17g |
| DMM XSRE | A531BLK | 6 | 8g |

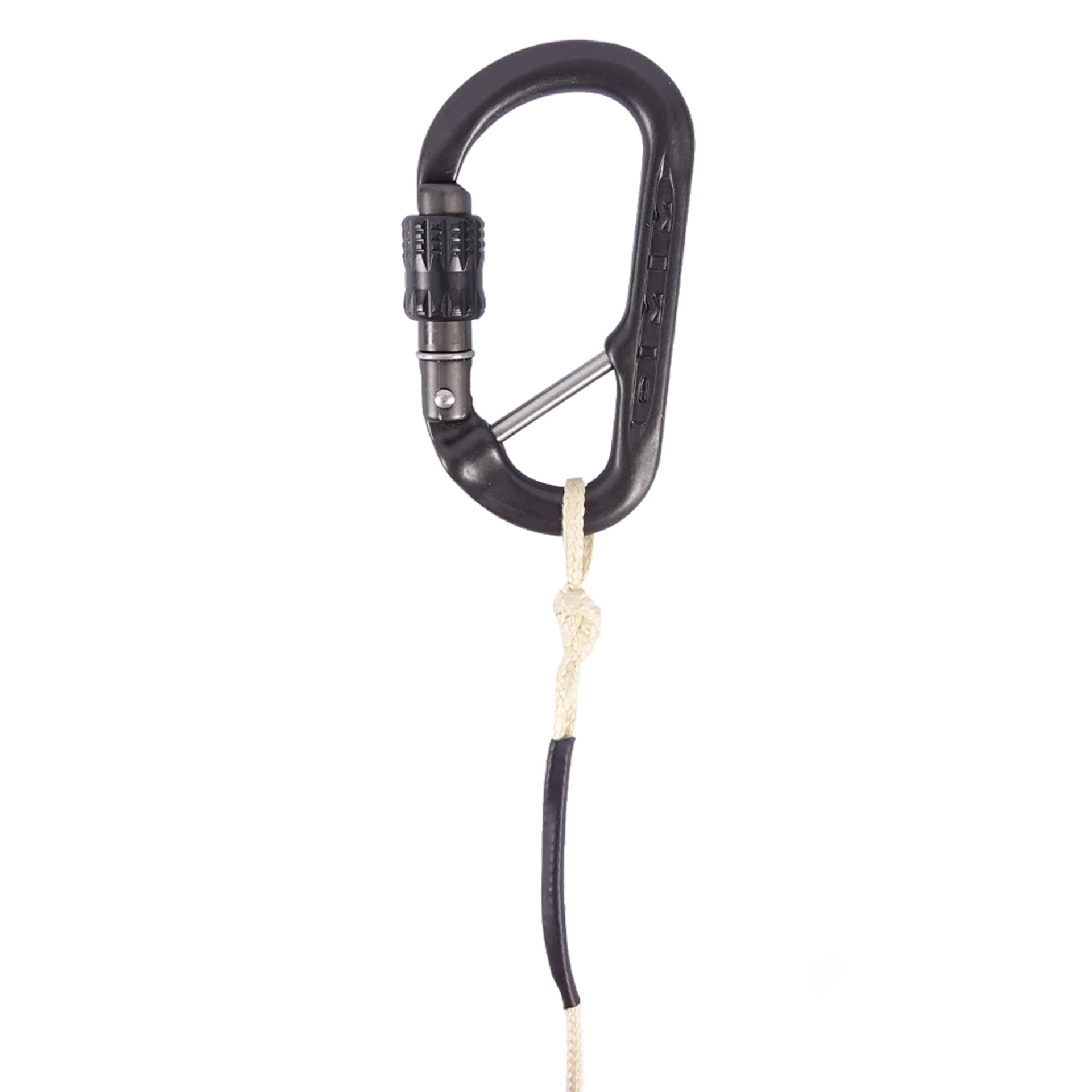

| DMM XSRE Lock | A532MG | 2 | 10g |

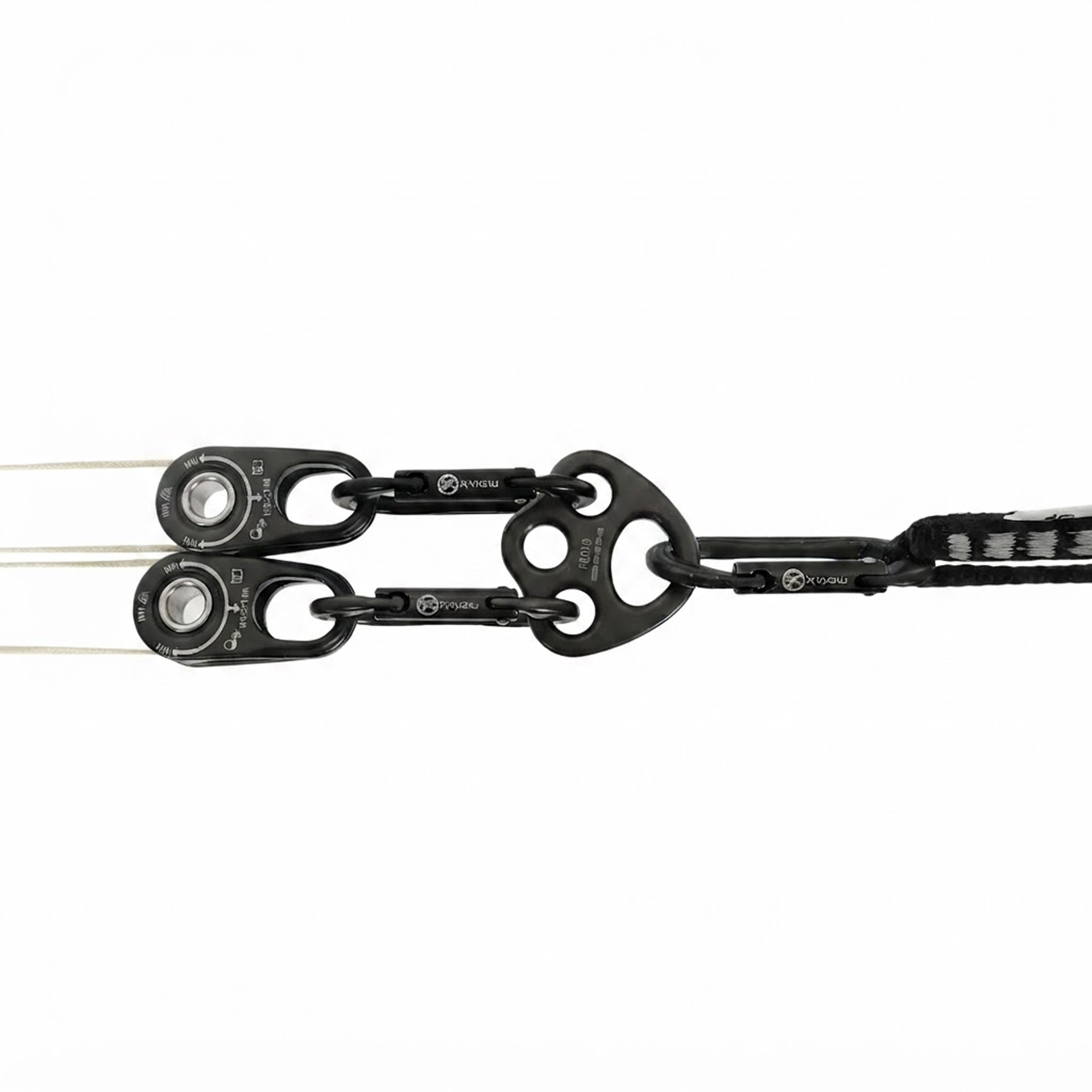

| Accessory Micro Rig Plate | RIG-XSRE-MG | 1 | 10g |

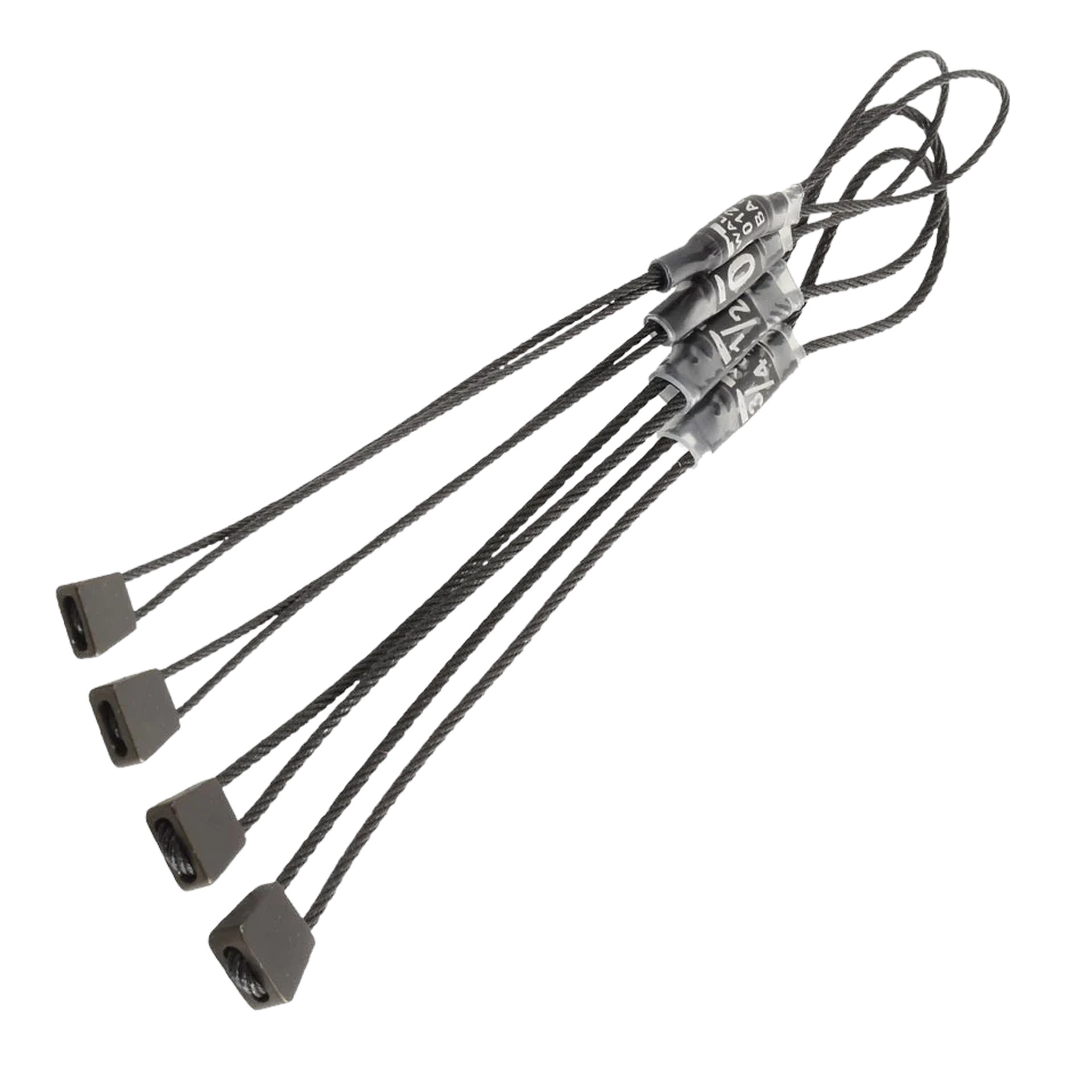

| DMM Micro Wallnuts 00 - 0.75 | A1600/59MG | 1 | 30g |

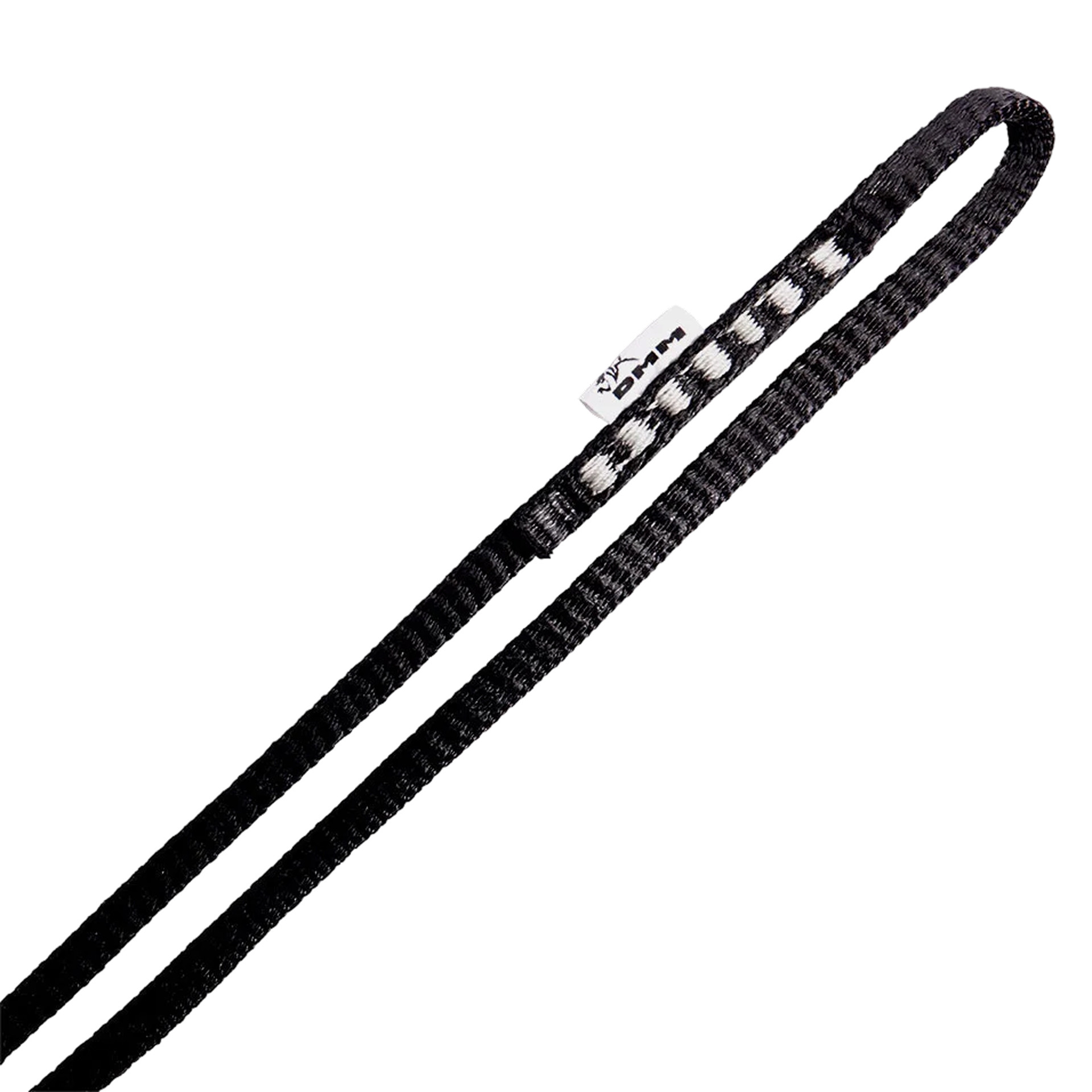

| DMM Dynatec Sling 8mm x 120cm | SP08120BLK | 2 | 20g |

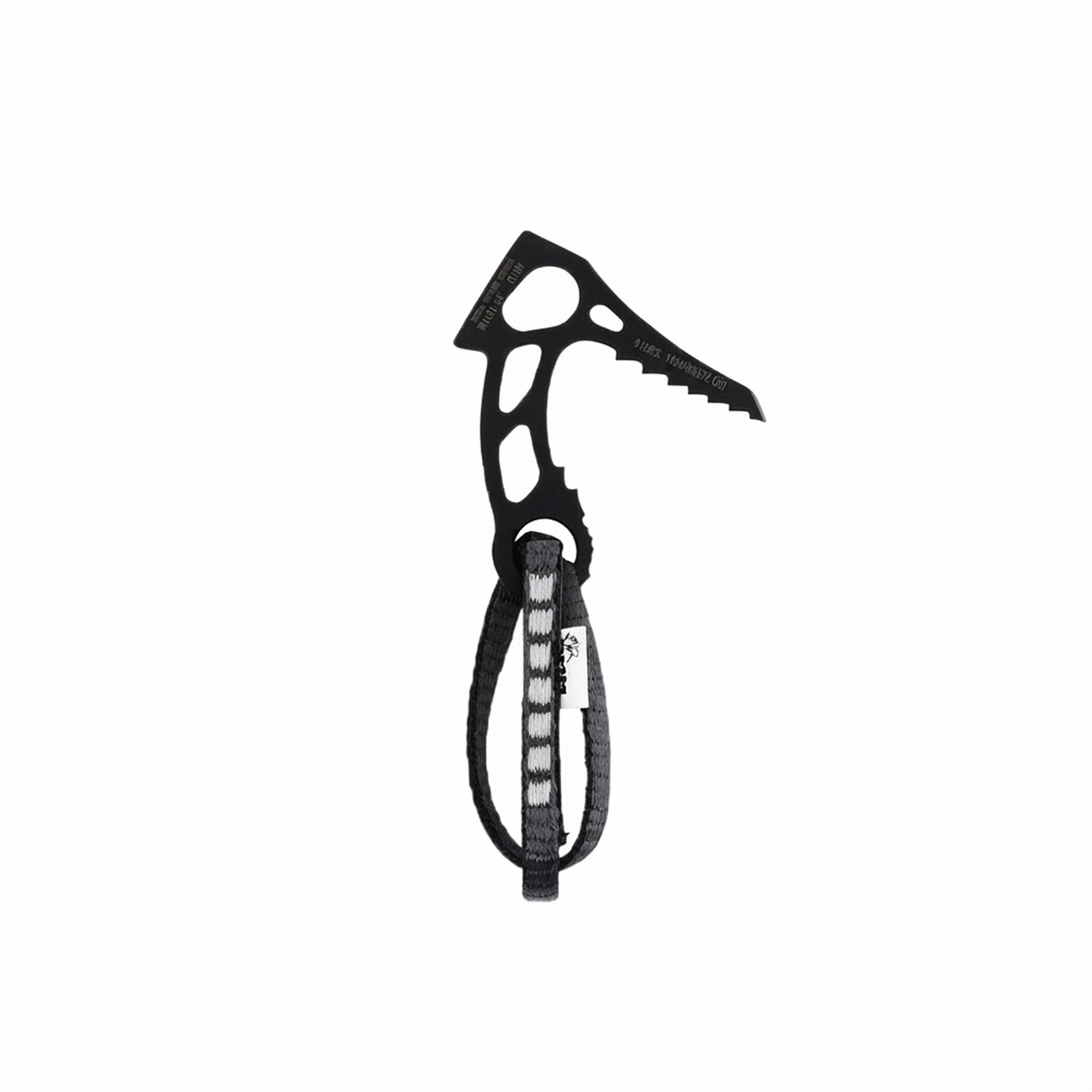

| Terrier | C1385 | 1 | 73g |
| Bulldog | C1375 | 1 | 150g |
| Helix HAL Pouch | HX-HALPOUCH-BLK | 1 | |
