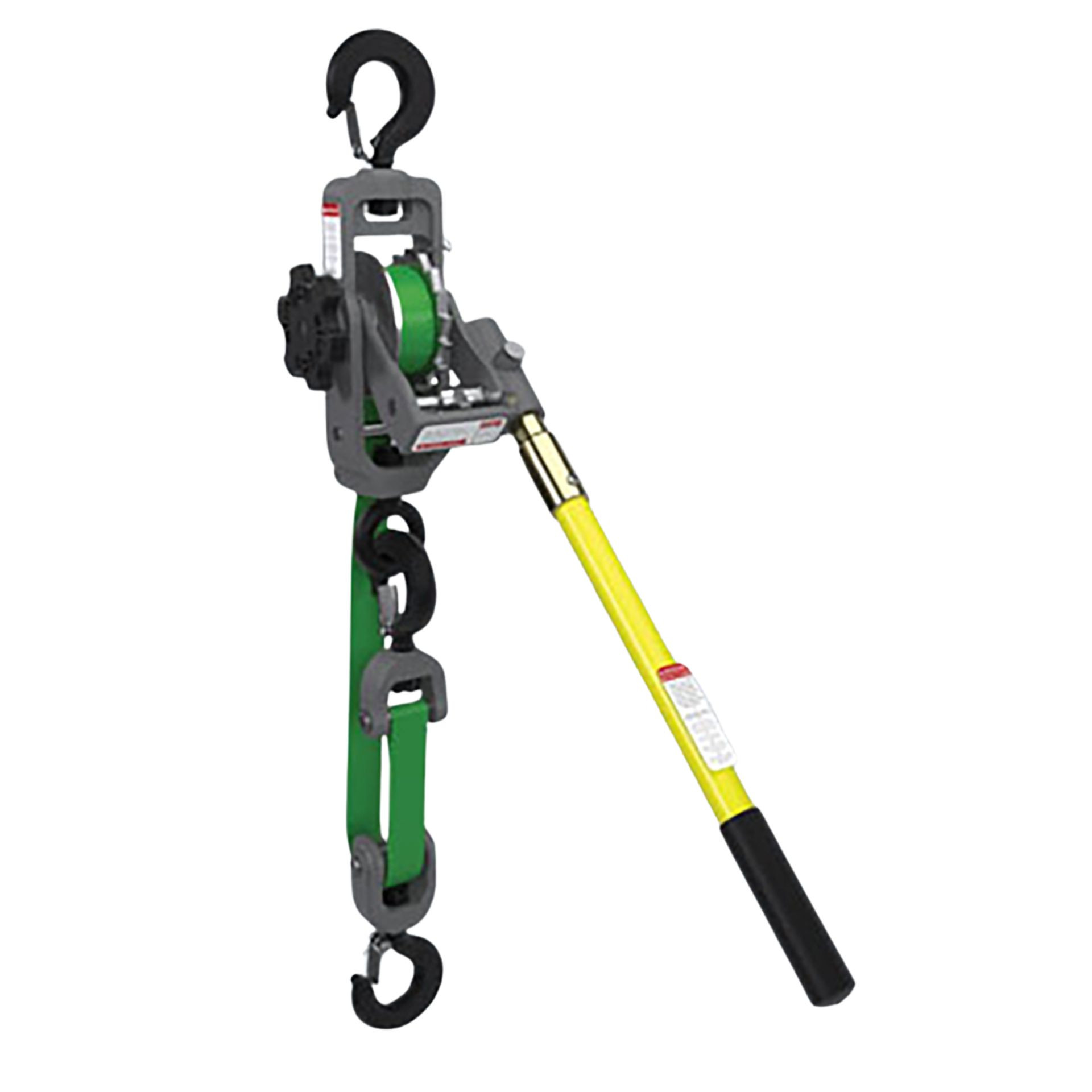

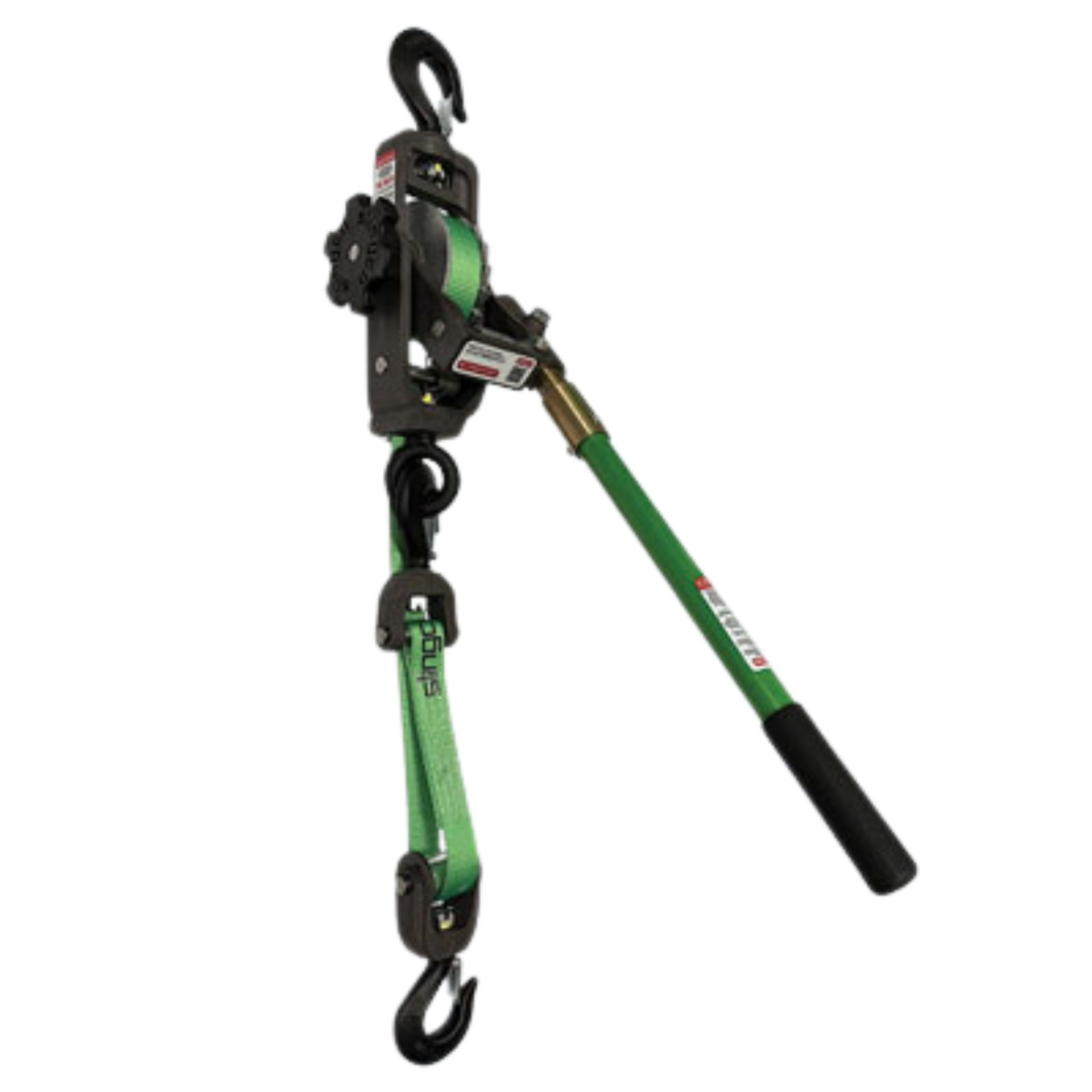

The Slingco 3K Strap Hoist uses pressure die castings for a professional look, consistent material properties, and smooth finish. The strap is hi-vis bright green in color for easy visibility. The strap hoist has three operating positions: lift/pull, lower/release, and freewheeling.
Features
- ASME B-30-21 compliant
- 125% working load tested
- Hi-vis green strap
- Interlocking pawl lever system
- Replacement parts
- Hot stick operable version
Specifications
- Hoist
- Single Line Capacity: 1,500 lb. (680 kg)
- Single Line Lift: 10 ft (3 m)
- Single Line Headroom: 17.5 in (444.5 mm)
- Double Line Capacity: 3,000 lb. (1,360 kg)
- Double Line Lift: 5 ft (1.5 m)
- Double Line Headroom: 22 in (1.5 m)
- Tool Weight: 11.25 lb. (5.1 kg)

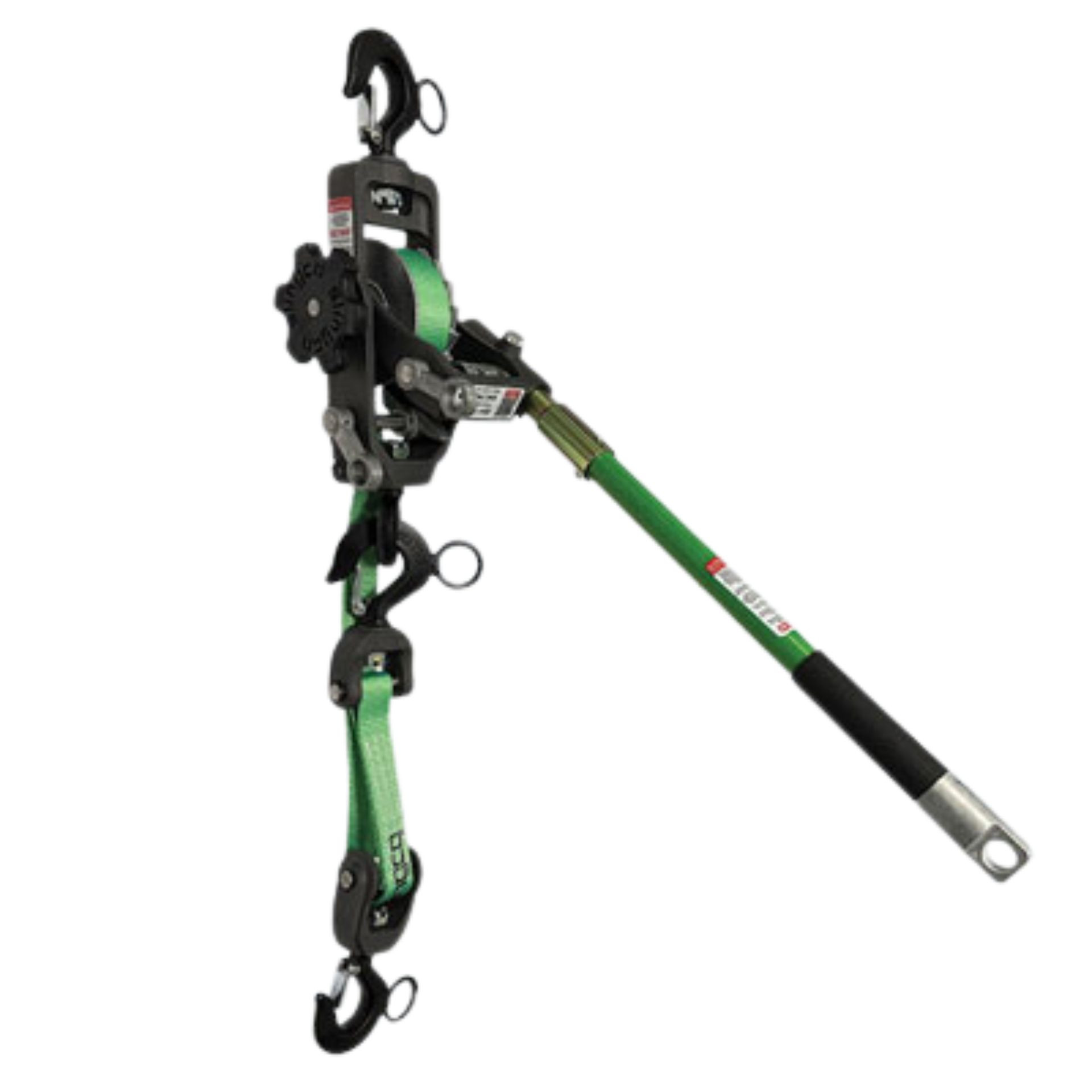

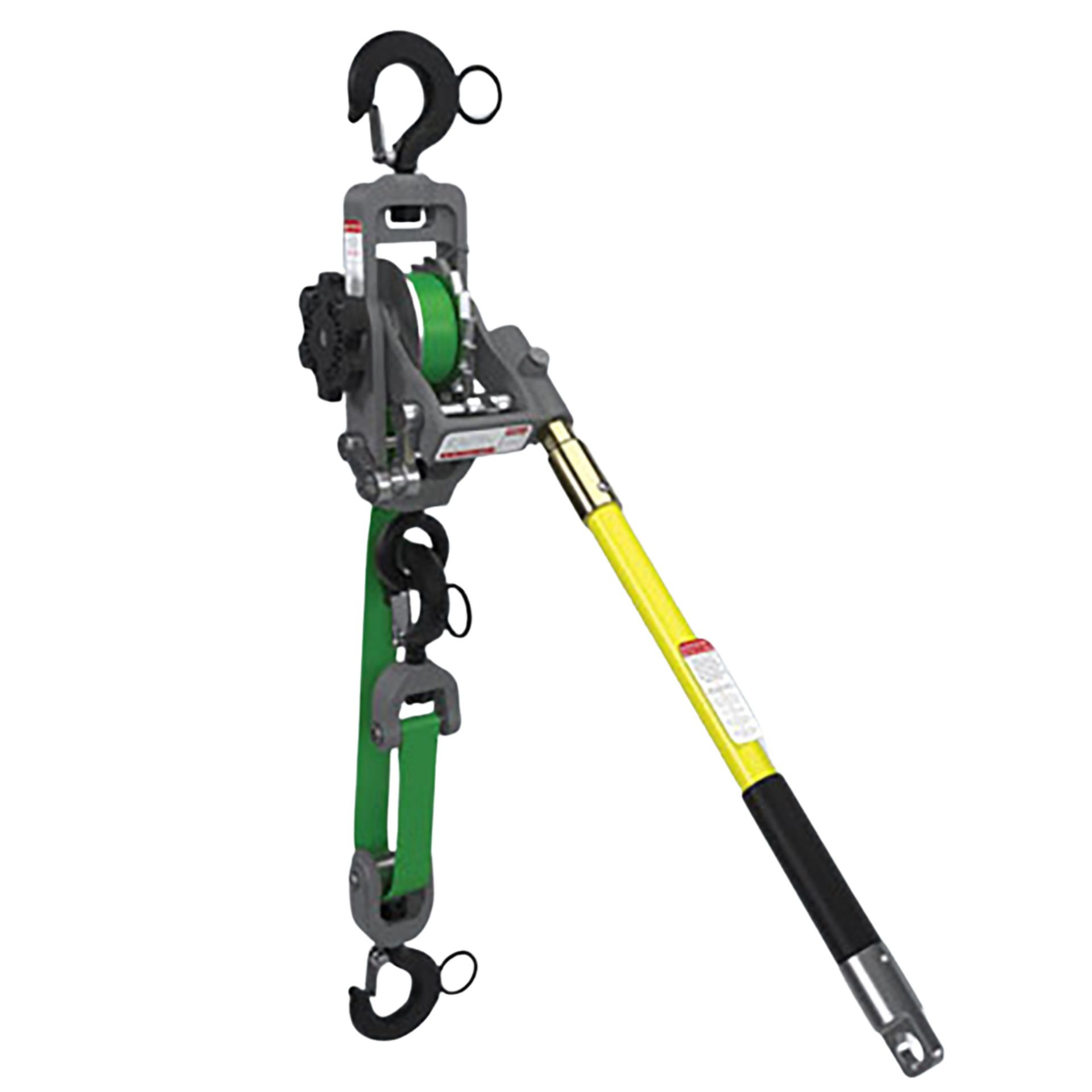

- Hot Stick Operated
- Single Line Capacity: 1,500 lb. (680 kg)
- Single Line Lift: 10 ft (3 m)
- Single Line Headroom: 17.5 in (444.5 mm)
- Double Line Capacity: 3,000 lb. (1,360 kg)
- Double Line Lift: 5 ft (1.5 m)
- Double Line Headroom: 22 in (1.5 m)
- Tool Weight: 11.5 lb. (5.22 kg)
