Spreader Bar can also be attached 2:1 Pick off the strap of the suspension system to allow for horizontal, semi-sitting and semi-vertical (80 degrees) positioning of the patient. This system of lifting is useful when longer suspension
times are anticipated, reducing the chances of development of suspension
syndrome. Lifting bridle is attached to a chest-mounted D-rings on Spec
Pak. Head and leg strap allows for the complete stabilization of the patient without the need for a full litter. Head Strap allows it is easily adjustable with the use of 6kN rated Ancra Cam Buckles. Lifting bridle has full strength 22.2 kN rating. All carabiner and connectors are
included. SWL/WLL 2.3kN. MBS 23 kN.

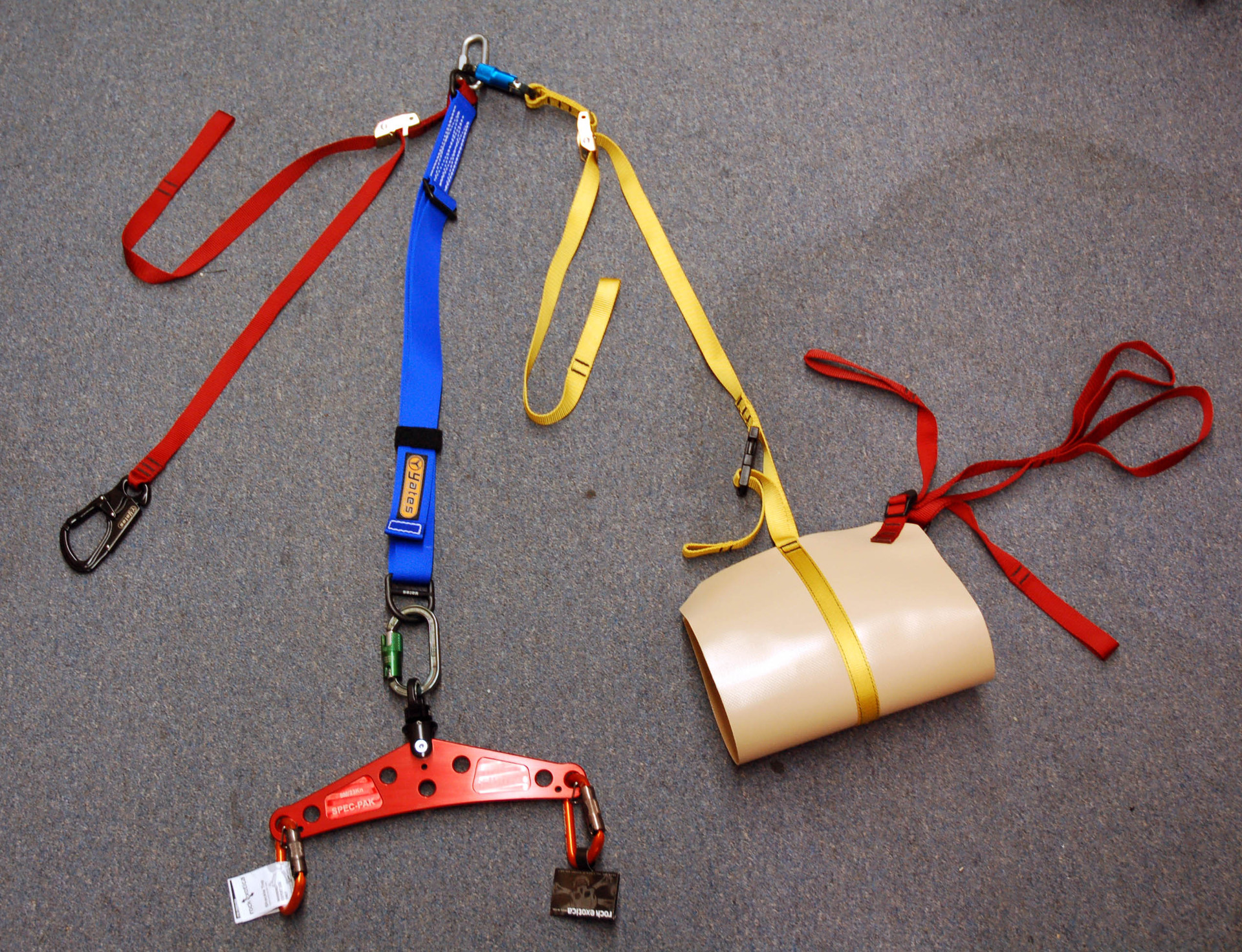

Complete Bridle Kit Includes:
- Spreader Bar w/swivel and carabiner connectors
- 2:1 Pick off Strap (18-36" adjustable)
- Leg Support Section w /Yates-1393 ANSI auto-lock carabiner.
- Head adjuster strap to adjust patient suspension angle.
- Yates 1397 ANSI three Stage auto-locking carabiner to connect the spreader bar to the suspension system.
